Plastic Products Machines
Plastic Injection machines
Injection machines are used to produce plastic parts by injecting liquid plastic into the mold cavity. These machines provide the possibility of producing a wide range of products by changing the molds mounted on them. Our injection machines are of high quality and have a long service life. We provide maintenance services and spare parts for our machines.
Multiple sizes of injection machines are available and can be chosen according to the weight of the piece to be produced and the size of the mould. These machines are used to produce various products in different industrial sectors such as kitchen utensils, grills, and many construction tools.
Our machines are of Chinese origin and range in size from 140 to 650 tons.
Injection machines can be used separately or in automated production lines.

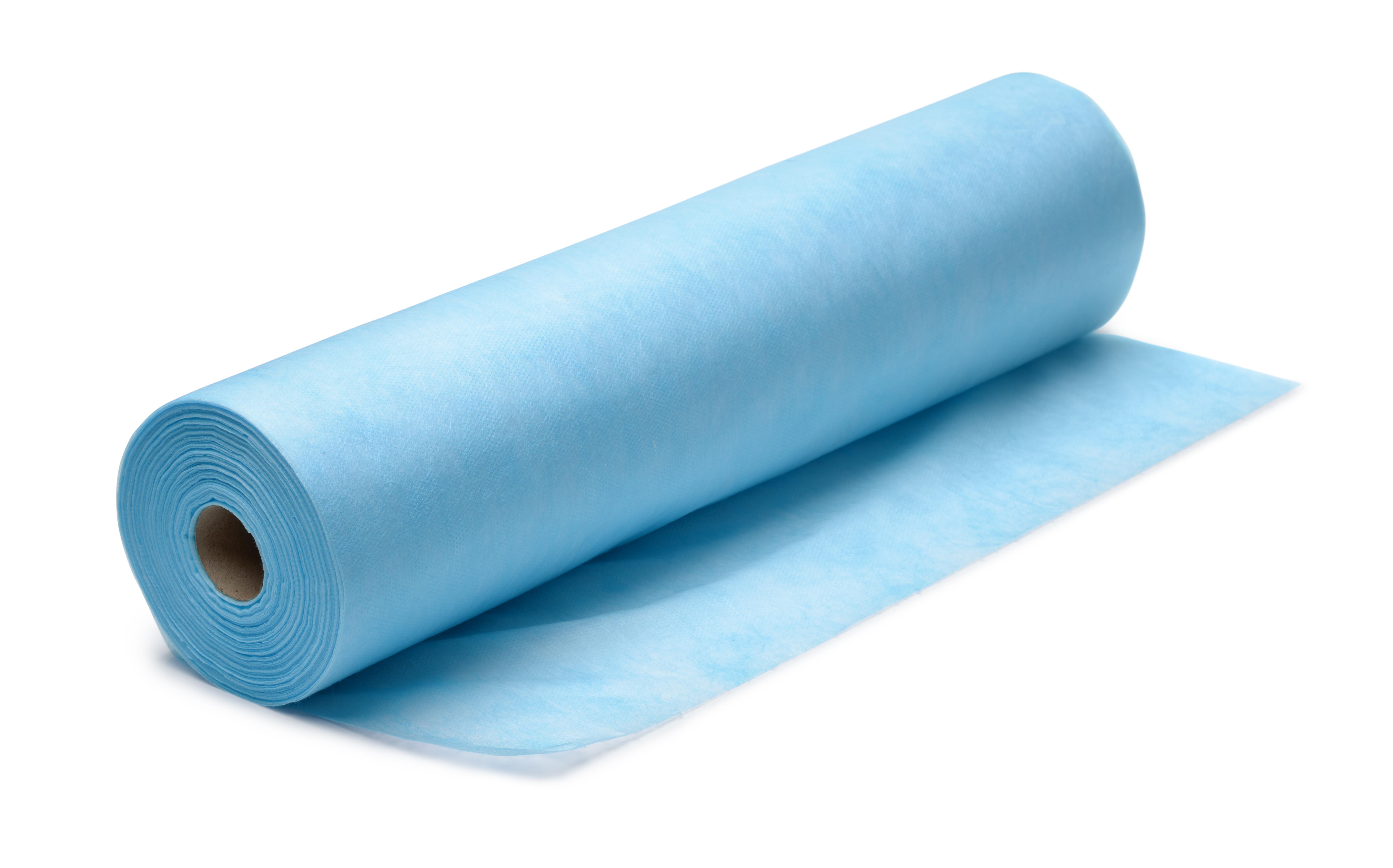

Non-woven fabric production lines
The non-woven fabric production line is capable of producing polypropylene (PP) fabrics through successive production stages so that production starts from granules and ends with fabric rolls. Various types of fabrics can be produced according to the number of layers required. Spun-bond (S), Melt-blown (M), SS, SMS, SMMS, SMMMS, SSMMS, or any arrangement of 5 layers can be produced by these lines.
S differs from M in the roll forming method of the in-line extrusion die. The final roll width can also be from 1.6m to 4.2m. These products are mainly used in the medical disposables sector, the industrial filters sector, the bedding sector, the diapers sector, and others.
We provide a high quality service in this regard, as we can provide project study services, design the appropriate line for the required final product, determine the required roll width, design utility systems, and we can also install and operate these lines.

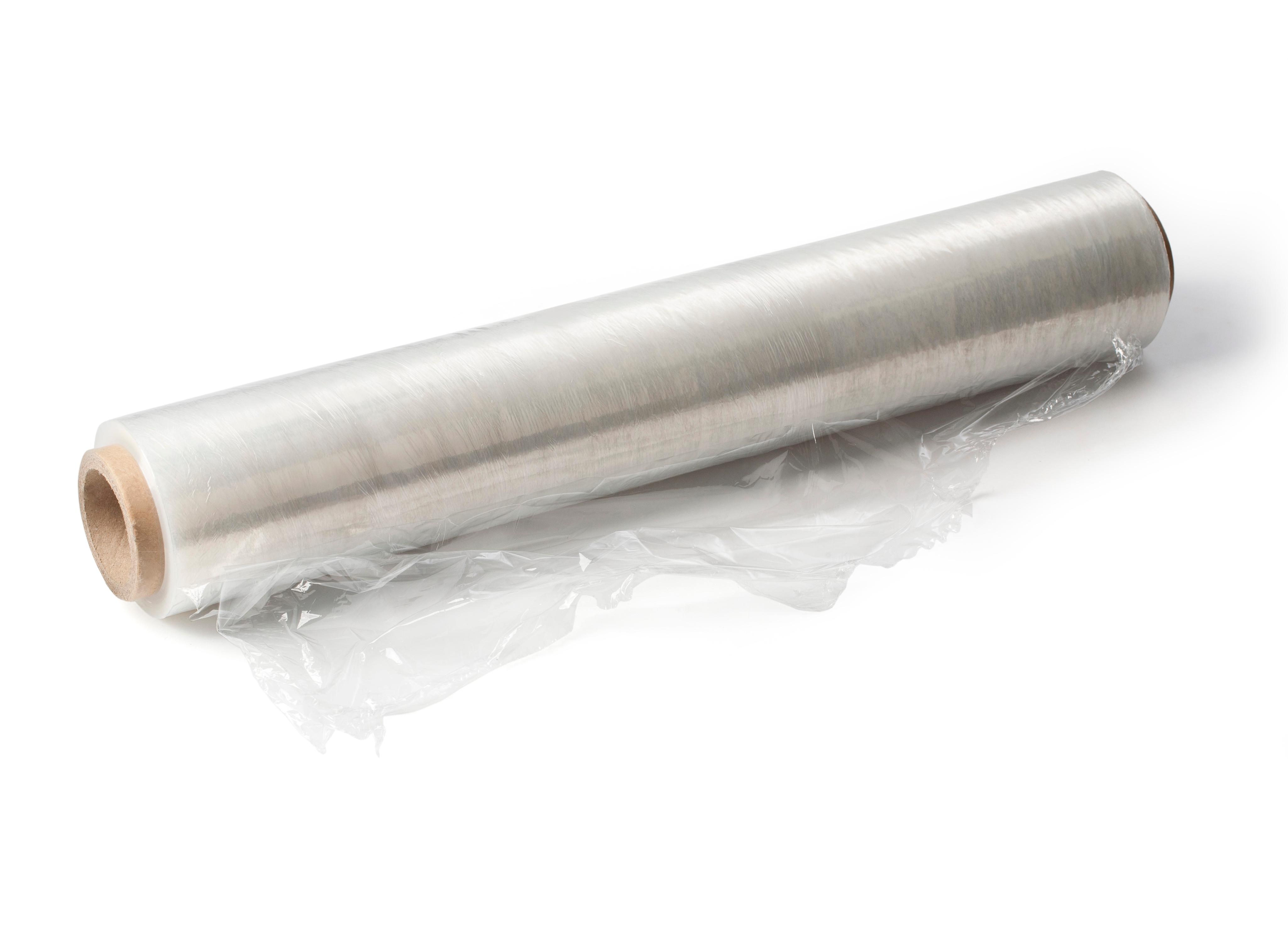

Stretch production line
These machines are mainly used to produce a film of PVC or PE with high elasticity starting from the pellets. This film is usually called stretch if it is made of PVC or PE and its thickness is between 8-12 microns. It is mainly used for food packaging and other sanitary applications. It is called shrink. If it is made of PE and has a thickness of 17 microns or more and is used in many industrial applications and in shrink wrapping machines. The machines that produce each type differ according to the raw material, especially the extrusion line with the mold.
These lines usually consist of a group of machines starting from the extrusion line that contains a mixer for granules with a dryer, a vacuum loading device and an extrusion mould, then a cooling and forming line, then a shearing line to determine the width of the rolls that are produced. Rolls come out of these lines, huge rolls, and they are converted into small rolls for daily use by other small machines.
We provide a high-quality service in this regard, as we can provide project study services, design the appropriate line for the required final product, determine the required roll width, design systems and assistance, and we can also install and operate these lines.

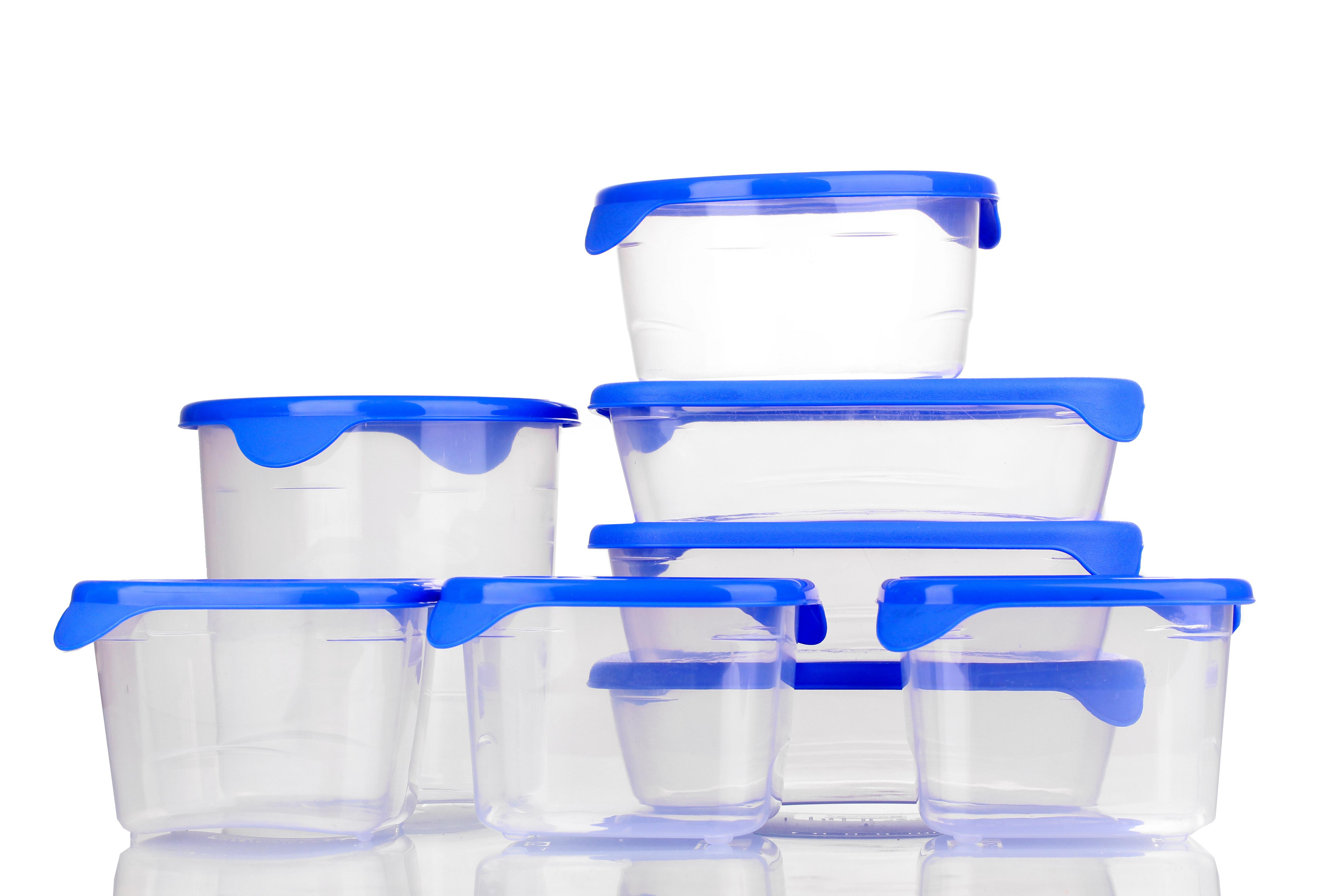

Plastic Thermoforming Machines

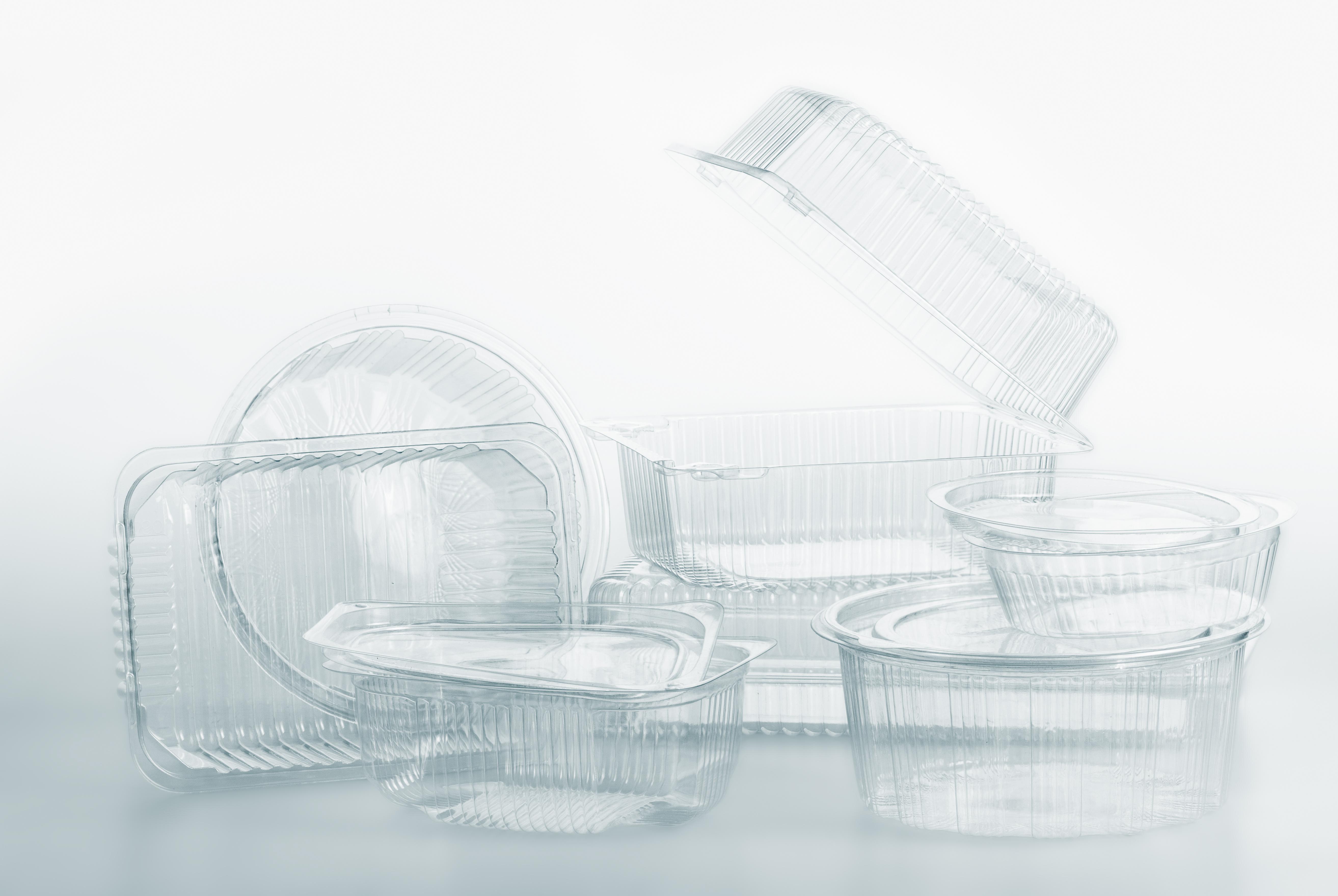

These machines are used in forming and producing plastic containers such as plastic cups, containers for preserving ready-made food, containers for preserving vegetables and fruits, egg trays, and other products that are used in the food industry in particular. The machine consists of several sections and may include three or four stations. Three-station machines can produce ready-to-eat food packages, cups or products without holes. While a fourth station is added to make a garment in the packages that are used in containers for preserving vegetables or lids for drinks.
We guarantee our customers productivity, work continuity, reliability and high flexibility. We also guarantee the best prices, the least breakdowns and downtime, while achieving the best return for the customer.

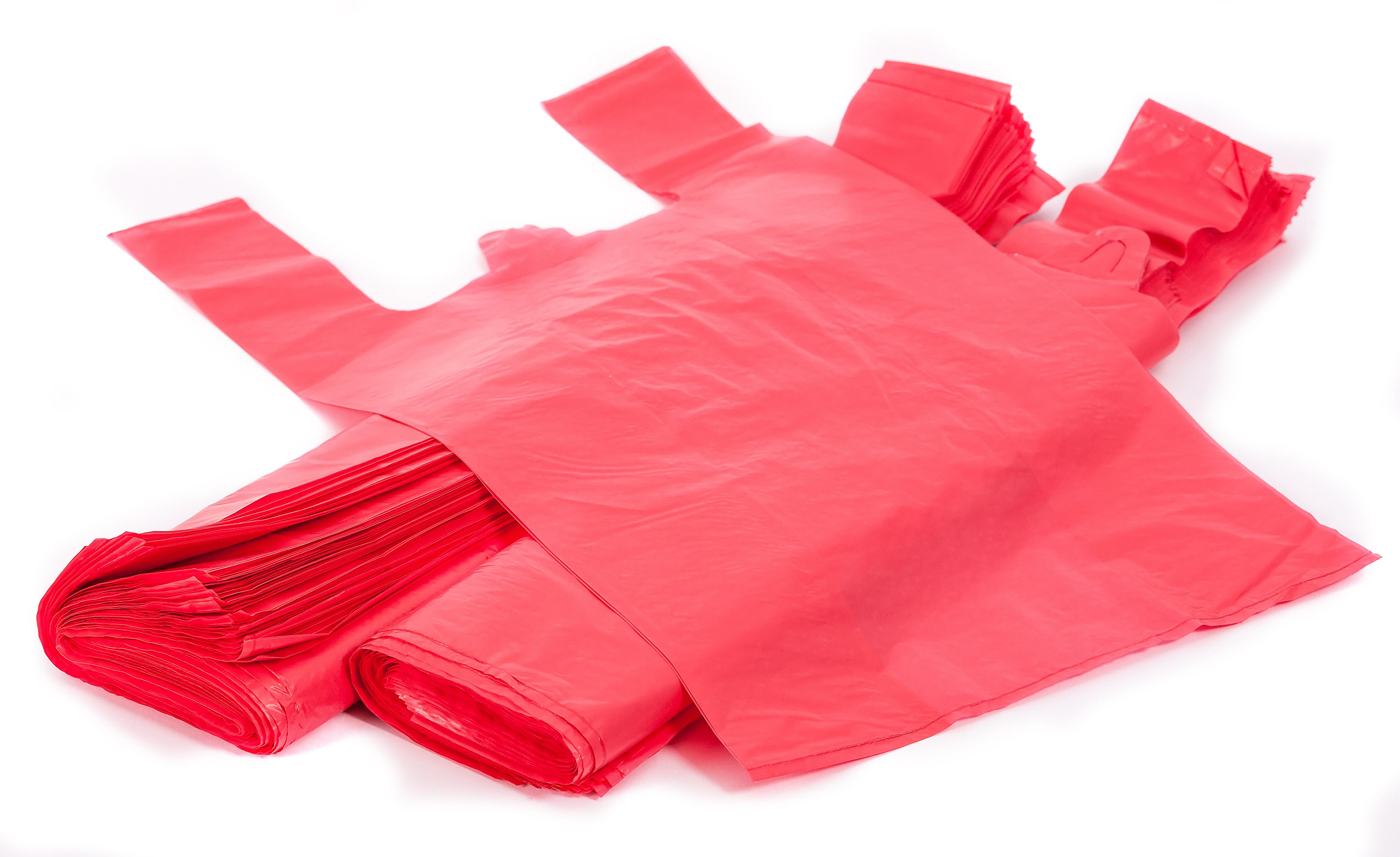

Plastic Bags Production Line
These machines are mainly used to produce PE plastic film, starting from pellets, and its thickness is between 20-100 microns, then it is mainly used to produce plastic bags of various shapes, T-SHIRT or DIE CUT, shopping bags in the form of rolls, waste bags and other bags. The most widely used materials are high and low density polyethylene (HDPE, LDPE).
These lines usually consist of a group of machines starting with an extrusion line which contains a granule mixer with dryer, a vacuum loading device and a rotary extrusion mould. It is possible to produce a film with one to three layers, and the film production with interlacing colors is also available. It is also available, in case of need, to add the CORONA TREATMENT feature to improve the surface tension of the film that is produced to be more suitable for printing or gluing with other materials. Then the roll enters the printing and cutting machines to produce the bags in the required shapes.
We offer a high quality service in this regard, as we can provide project study services, design the appropriate line for the required final product, determine the required roll width, design utility systems, and we can also install and operate these lines.
In the attached catalog, you can see the detailed technical specifications of the available machine sizes. We can help you choose the appropriate machine for the products you want to manufacture and suggest the necessary complementary machines.

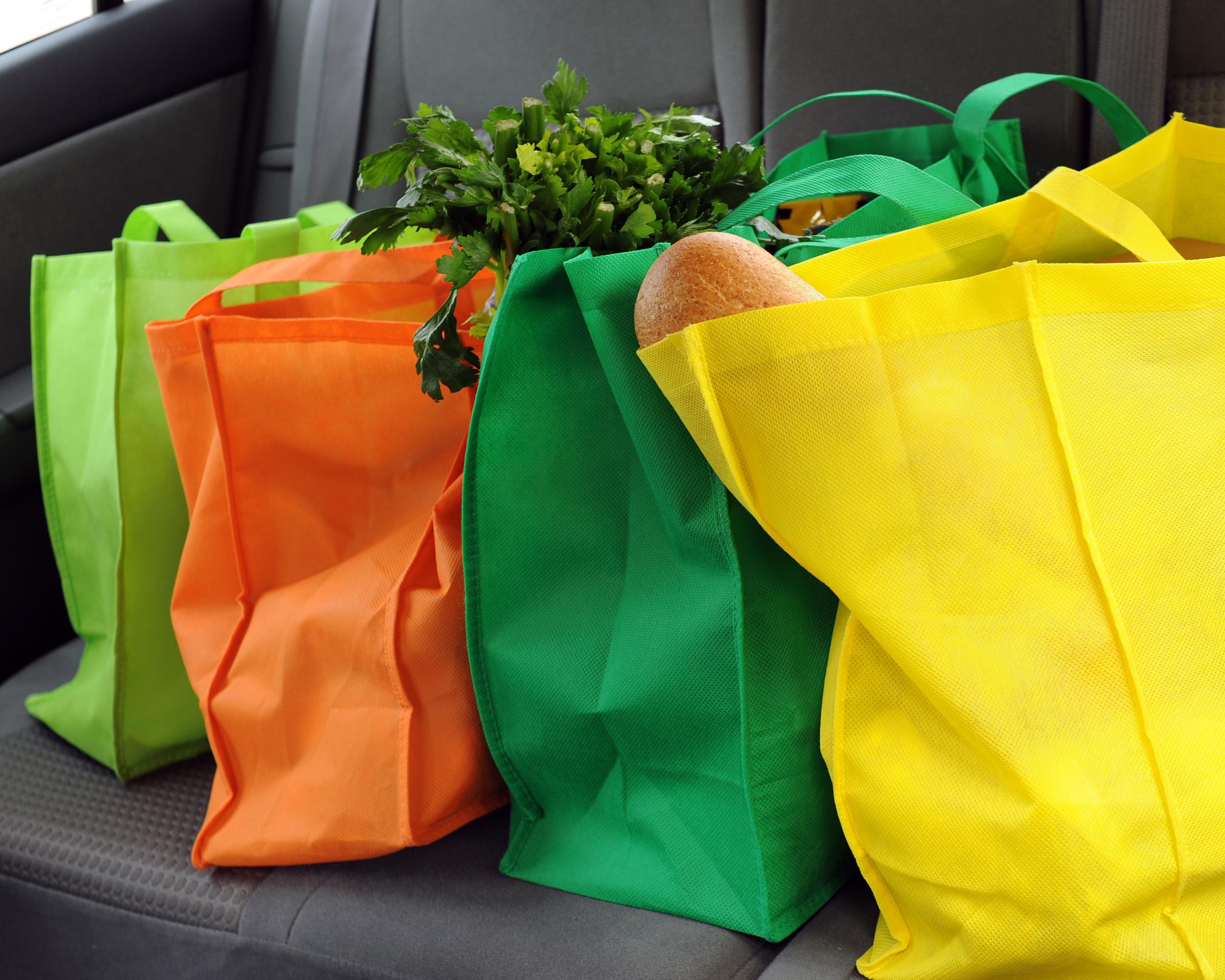

Fabric Bag Machines
These machines are mainly used to produce NONWOVEN BAGS that can be used multiple times. Bags of different shapes, T-SHIRT or DIE CUT, or with a handle can be produced by means of components and additions added to the basic machine. On-line printing can also be added in one or two colors. The suitable machine is determined by determining the smallest and largest width, as well as the smallest and largest suitable bag length. The fabric used in the manufacture of the bags has a grammatical size of 70-110 grams per square meter.
We offer a high quality service in this regard, as we can provide project study services, design the appropriate line for the required final product, design utility systems, and we can also install and operate these lines.

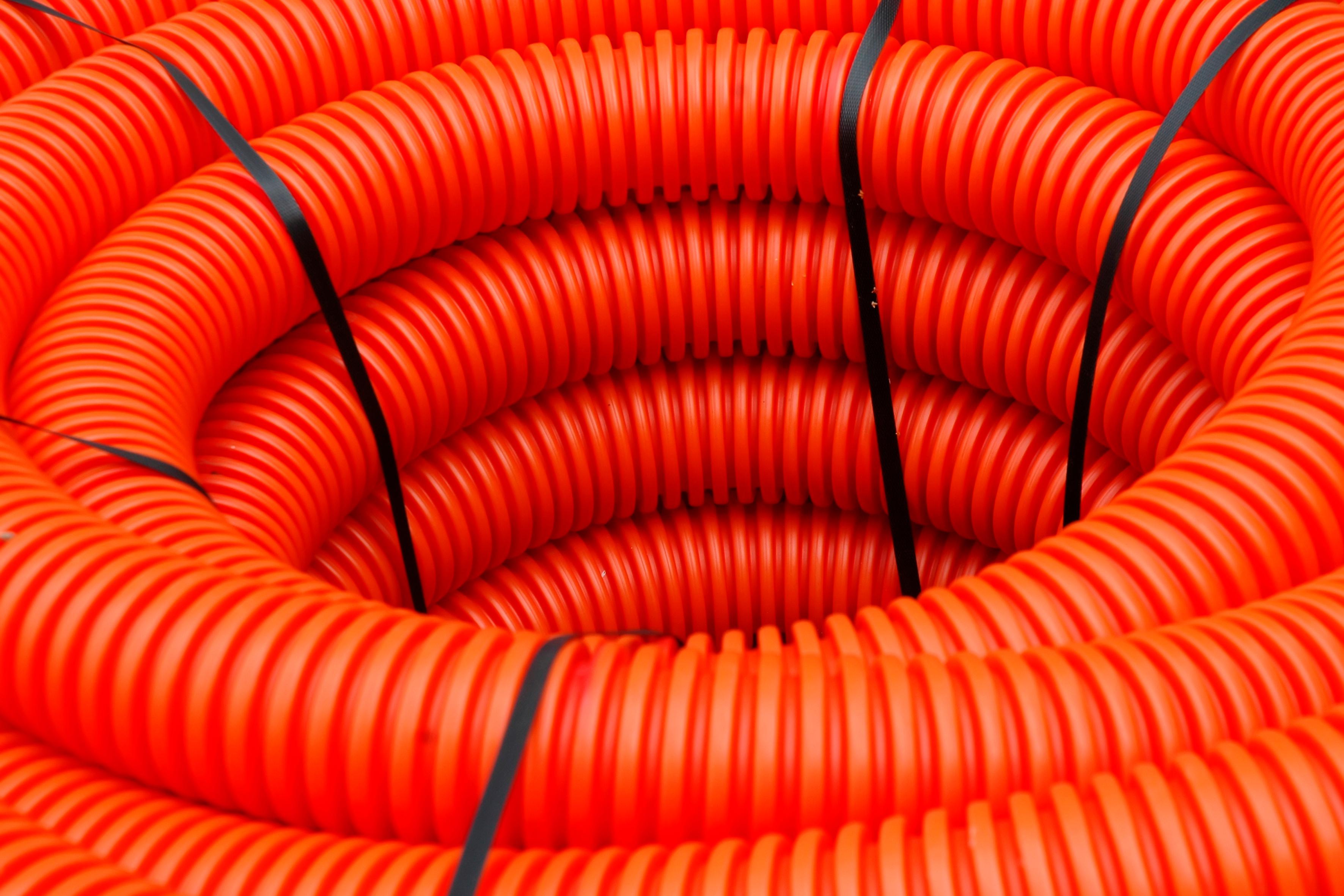

Plastic Extrusion Lines
Extrusion lines are used in the production of a large number of films and products that are used in various industrial and service fields. Extrusion lines consist of several components, a mixer for granules and a calibration system to prepare a mixture of original materials, recycled materials, colorants, and other additives, if any. Then the dryer which is used to calibrate the moisture in the materials to match the extrusion conditions, the vacuum loading device and the extrusion mould. It is possible to produce a film with one layer or several layers.
We offer a high quality service in this regard, as we can provide project study services, design the appropriate line for the required final product, determine the required roll width, design utility systems, and we can also install and operate these lines.
In the attached catalog, you can see the detailed technical specifications of the available machine sizes. We can help you choose the appropriate machine for the products you want to manufacture and suggest the necessary complementary machines.

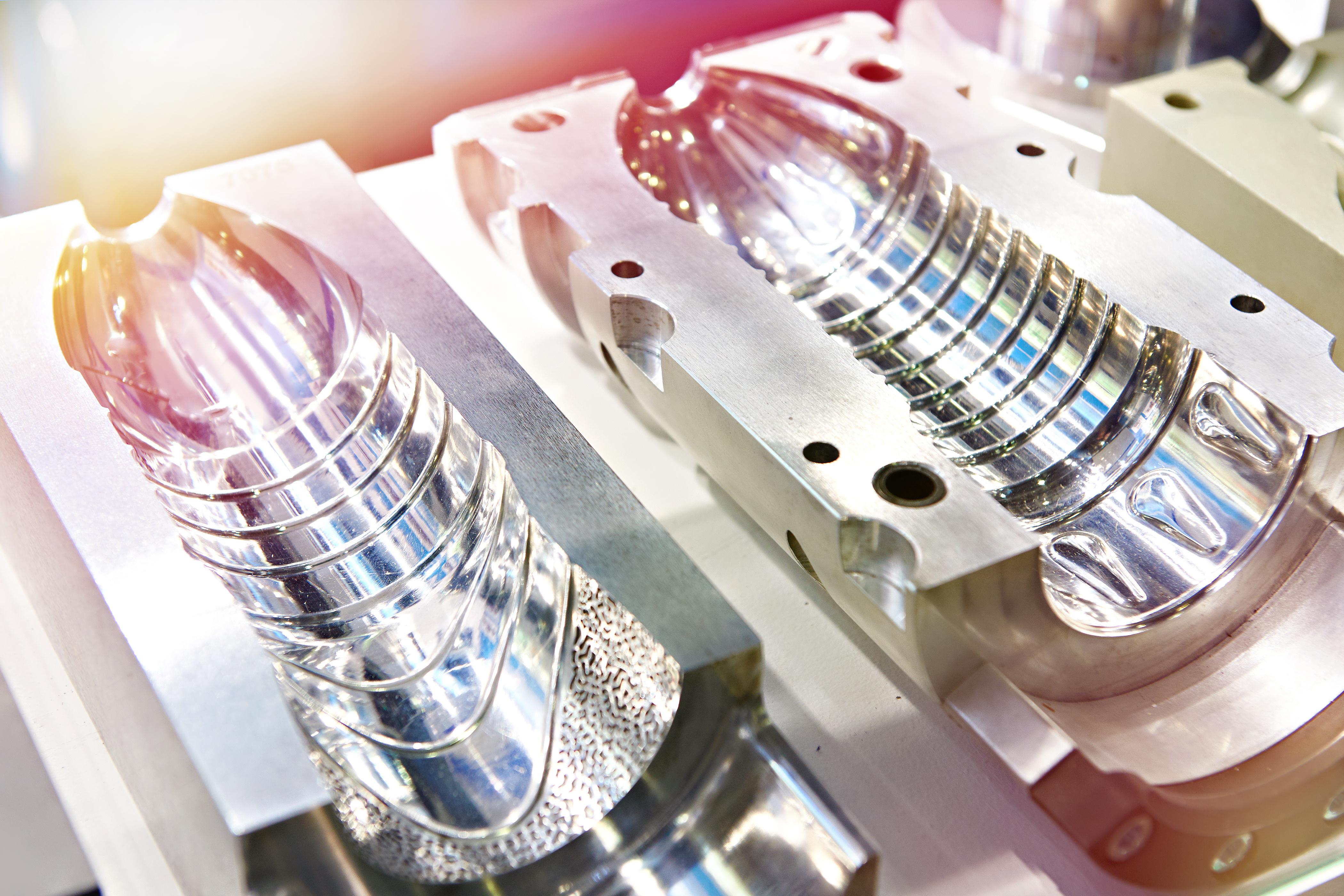

Plastic Blowing Machine
It is used to blow plastic with compressed air, so that the plastic is formed in different shapes according to the mold installed on the machine. These machines consist of several components of an extrusion unit that contains a mixer for granules with a dryer, a vacuum loading device, and a vertical extrusion mold, then the molds that close the film coming out of the extrusion mold, then these films are blown into the tightly closed molds. These machines are available with one or two extrusion and molding units.
Suitable for producing containers of sizes from 100 to 5000 ml. Suitable for use in the field of filling and packaging foodstuffs, mineral oils and cleaning materials, as well as for the production of children’s toys and other productive sectors.
We offer a high quality service in this regard, as we can provide project study services, design the appropriate line for the required final product, design utility systems and, and we can also install and operate these lines.

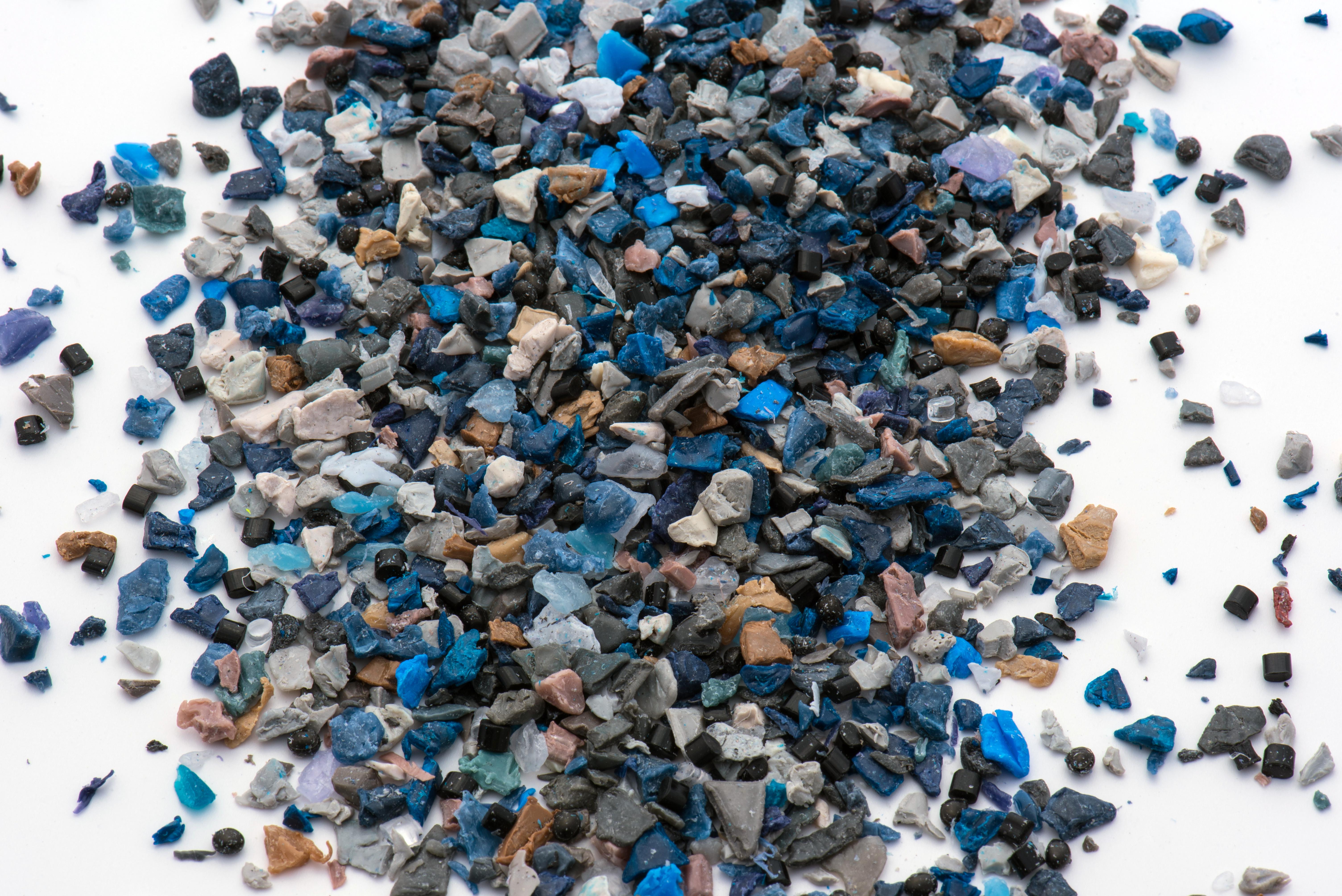

Plastic Crusher
Crushers are used in plastic factories to recycle defective or non-compliant products and then reuse them in various extrusion lines. The products to be crushed are fed through a special belt or manually. The walker can be equipped with a metal detecting tunnel to protect the crusher. The main part of the crusher is a row of knives moved by a high-powered motor. In addition to a row of fixed knives. The crusher is chosen based on the required productivity or the width of its slot.
We offer a high quality service in this regard, as we can provide project study services and design the appropriate line for the final product required, and we can also install and operate these lines.
