Plastic Thermoforming Machines

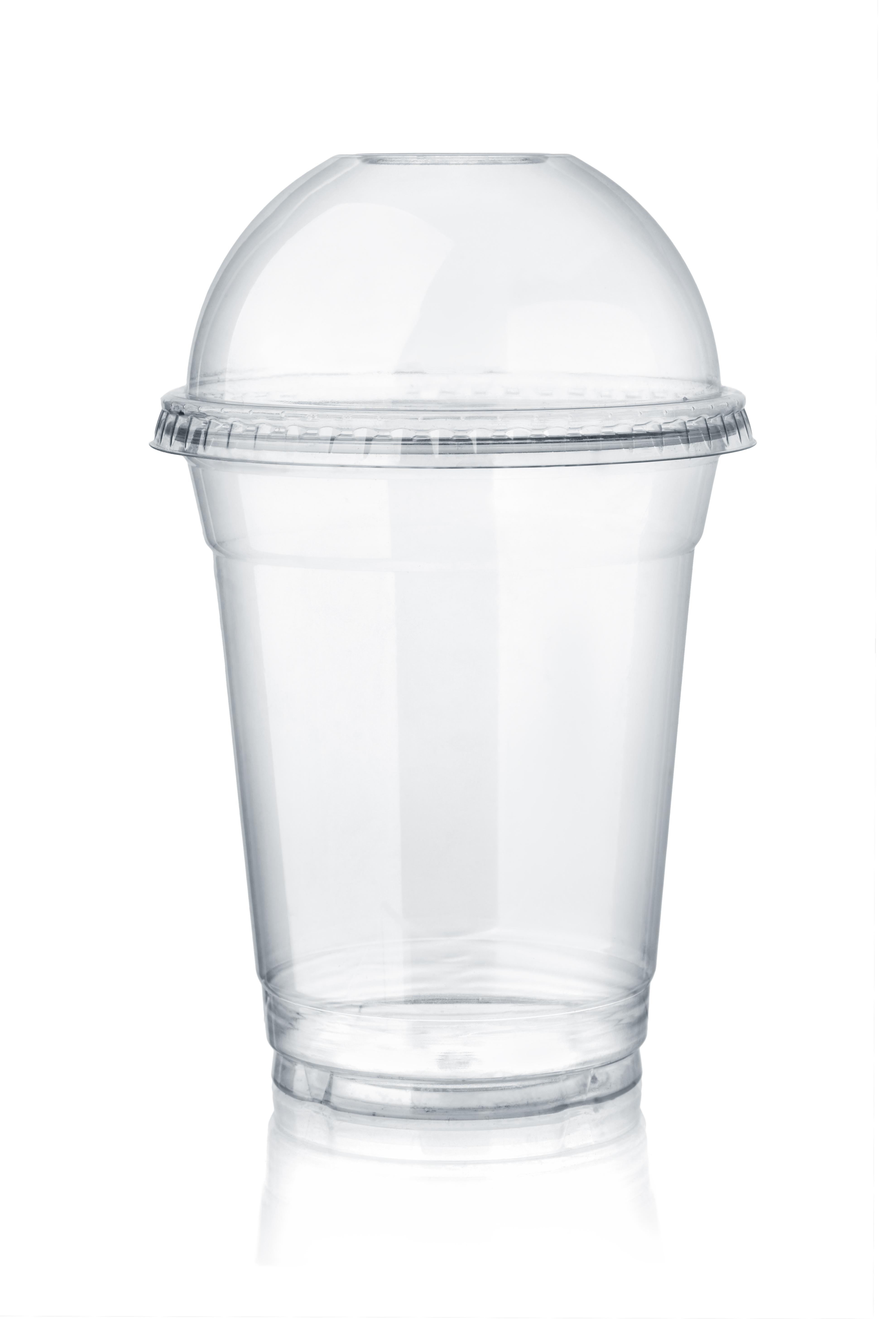

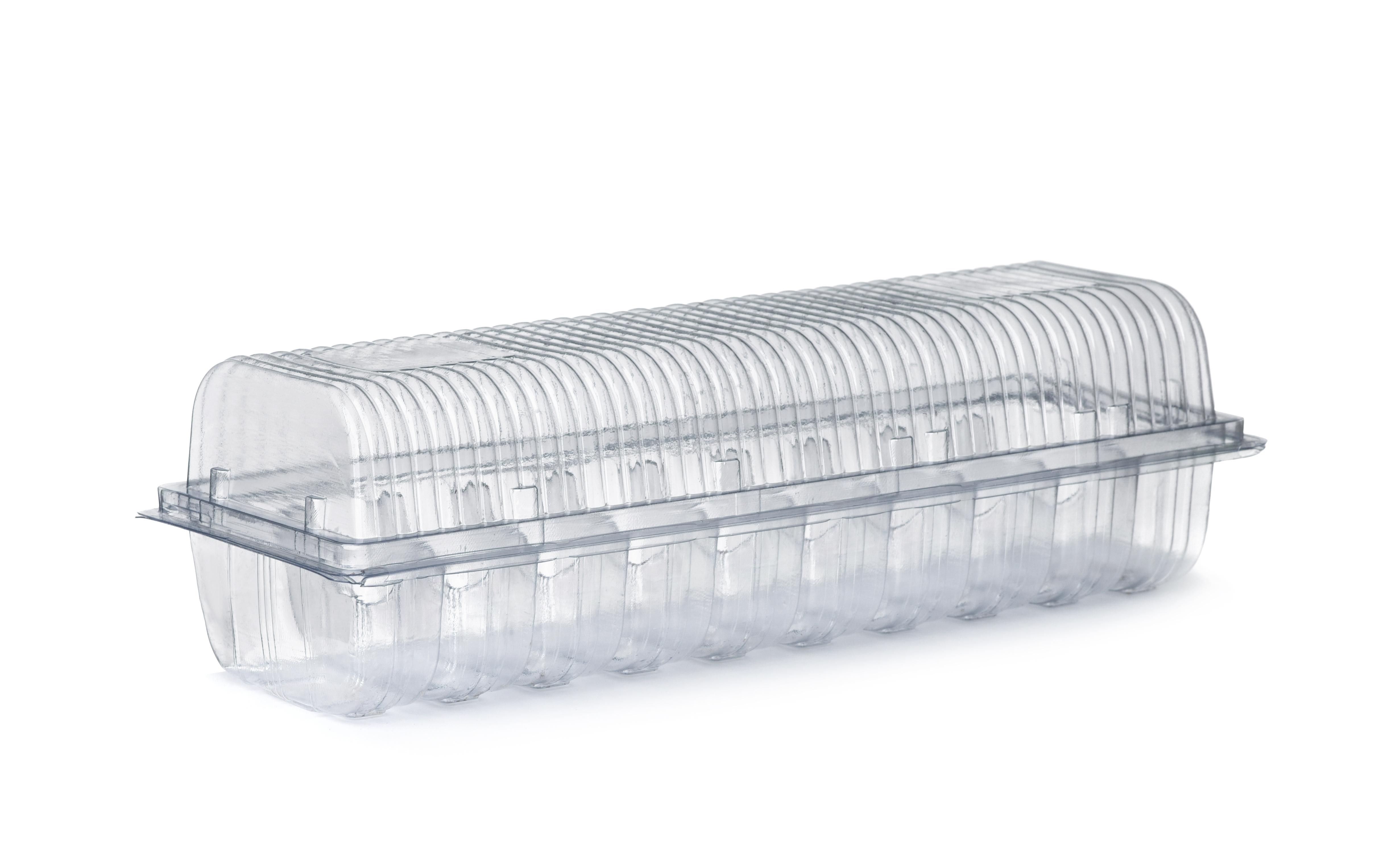

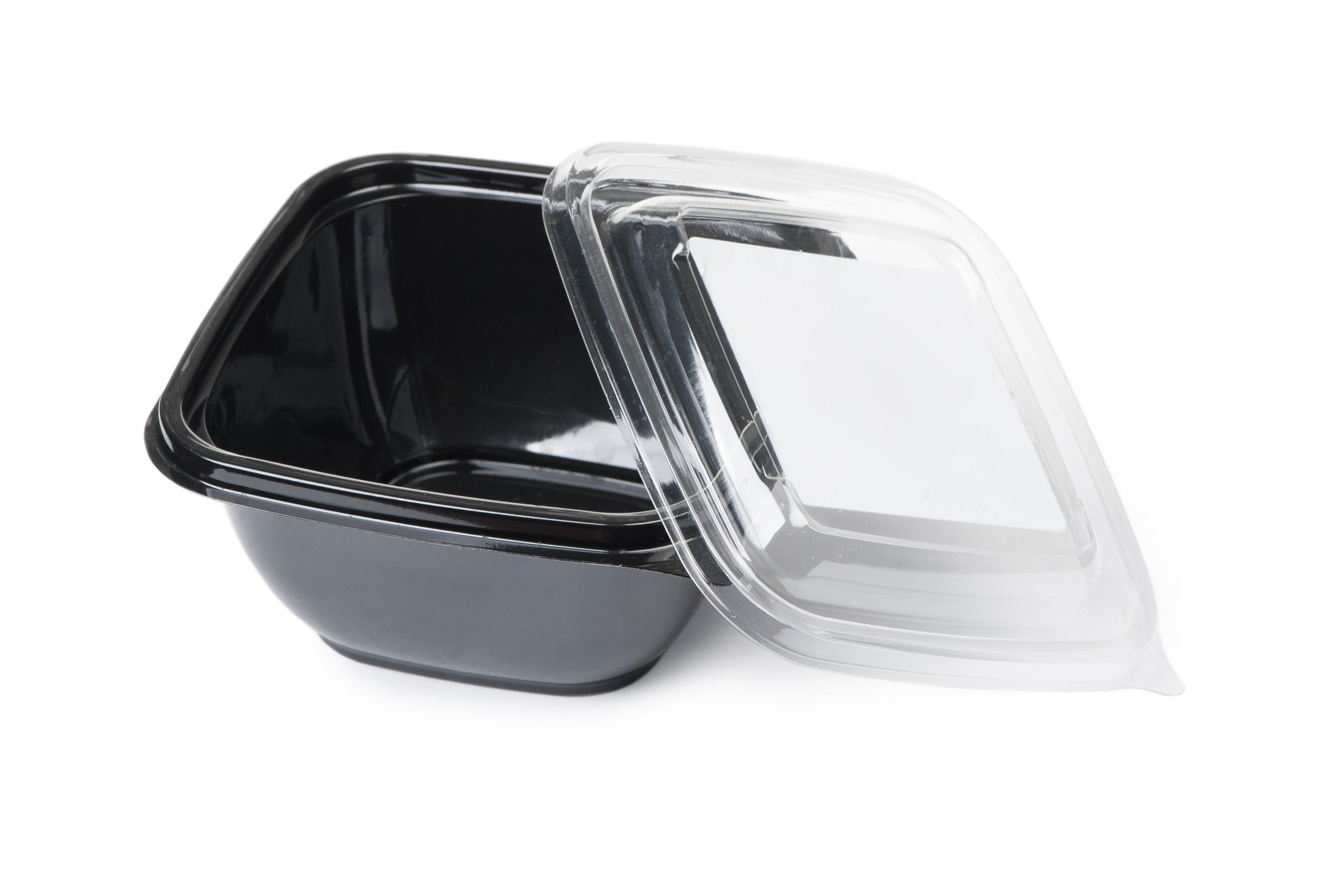

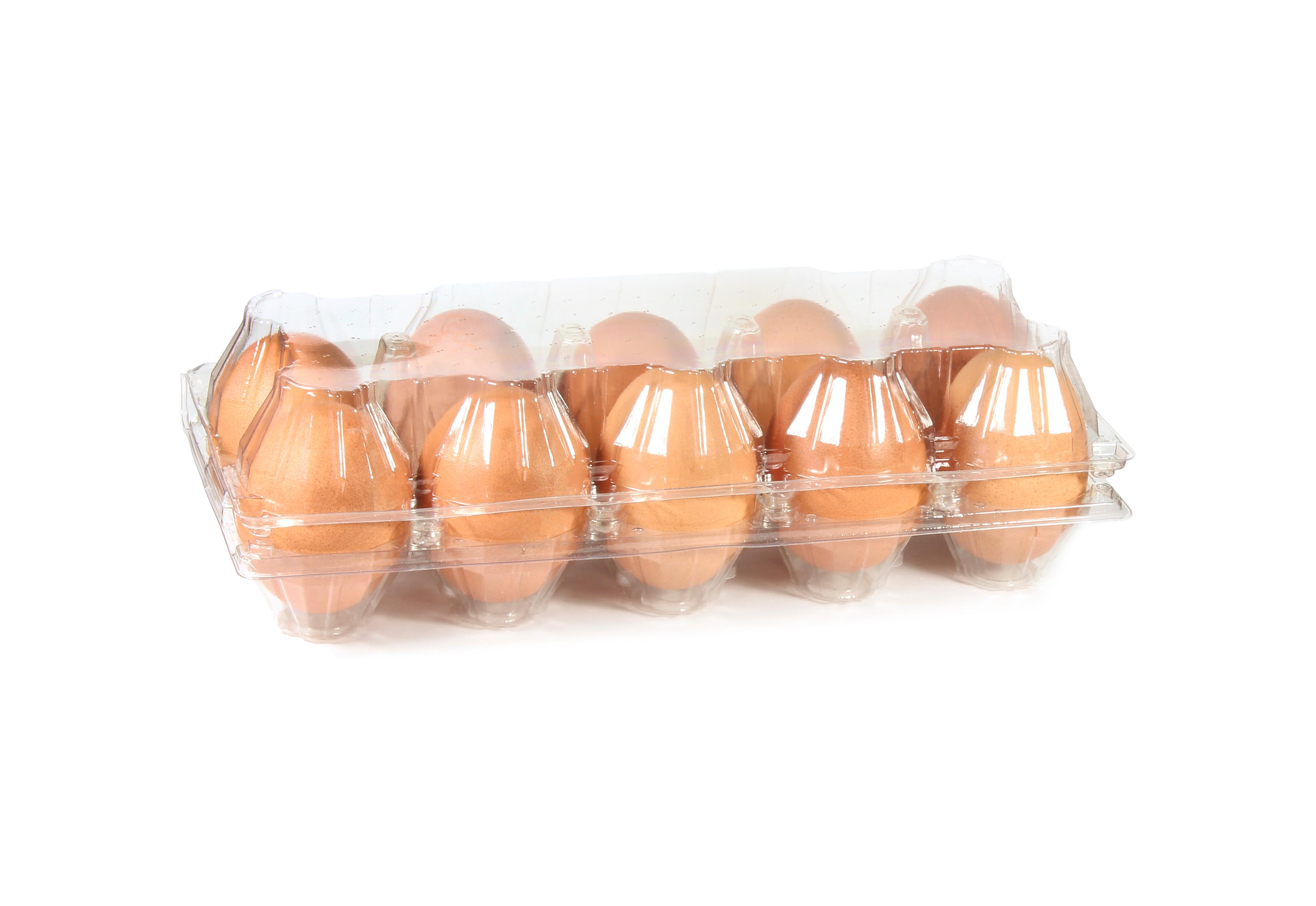

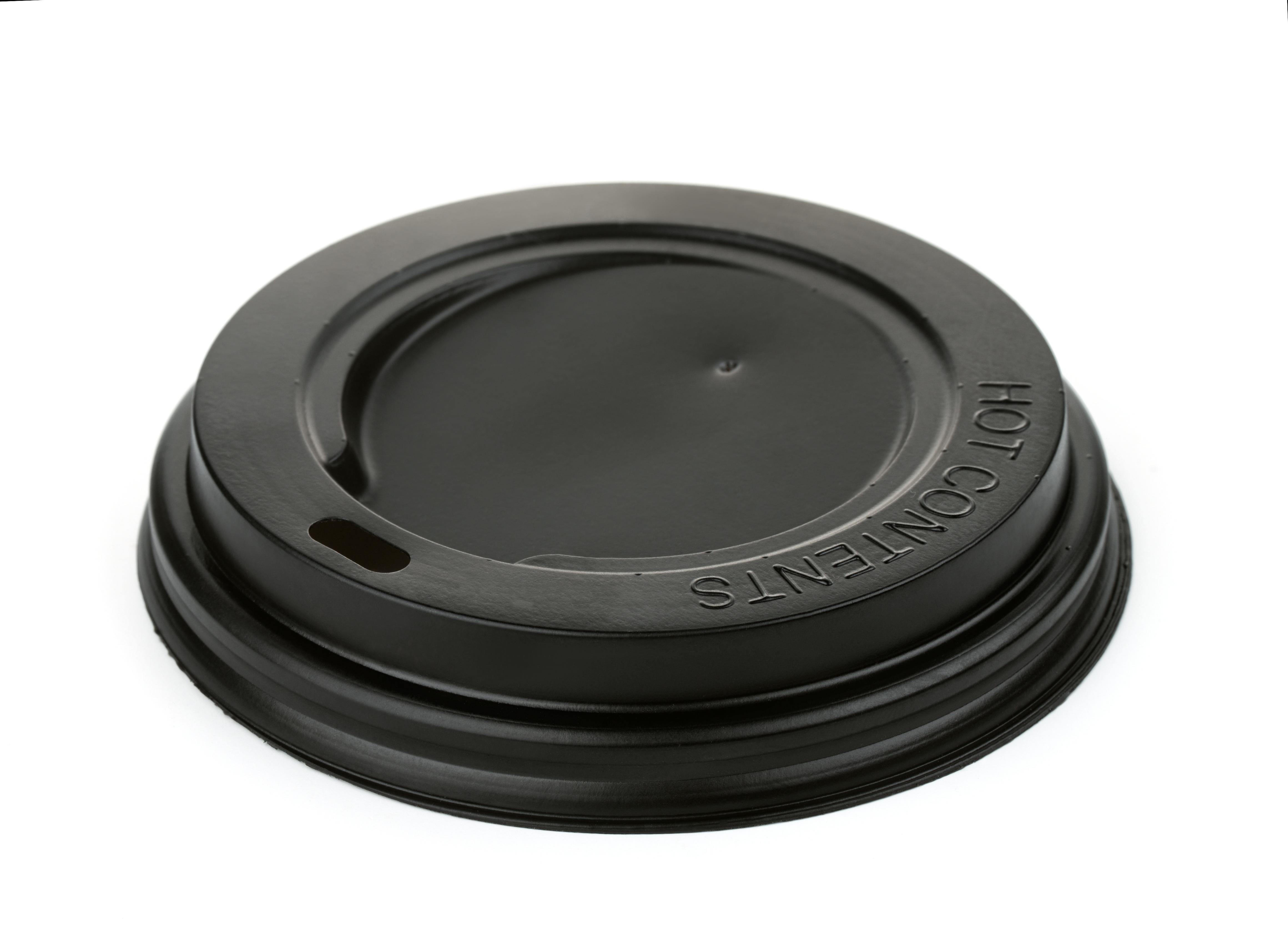

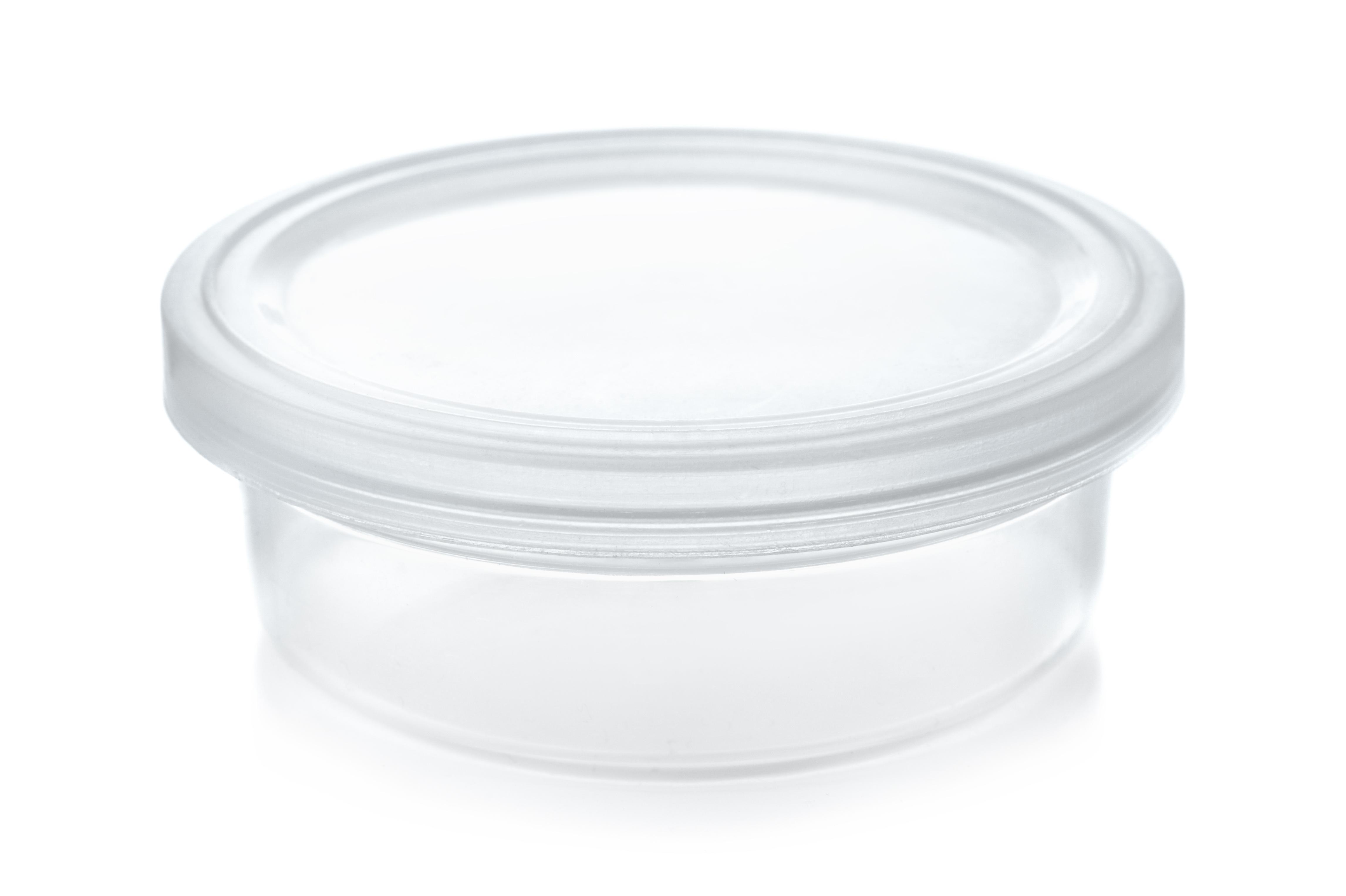

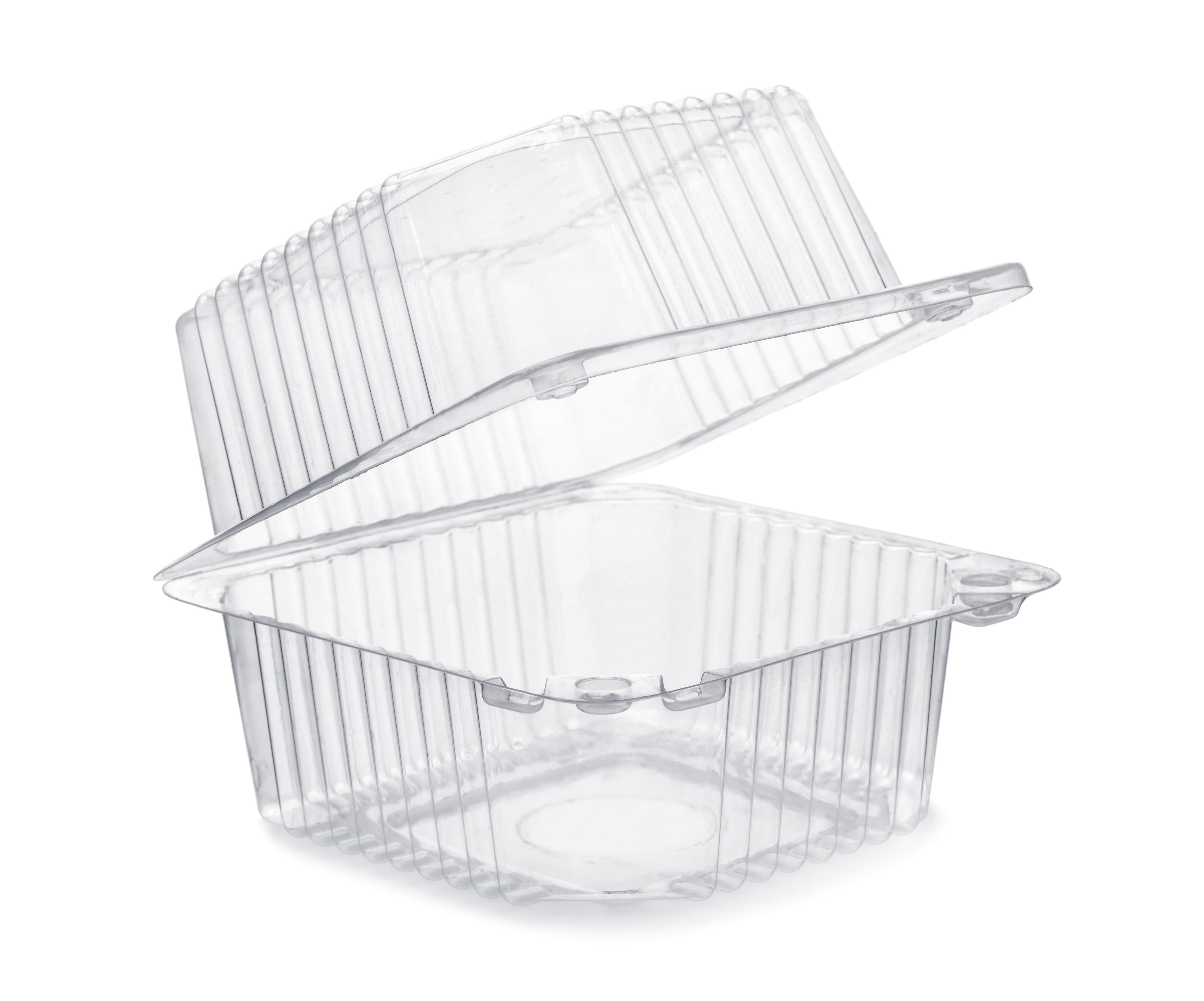

These machines are used in forming and producing plastic containers such as plastic cups, containers for preserving ready-made food, containers for preserving vegetables and fruits, egg trays, and other products that are used in the food industry in particular. The machine consists of several sections and may include three or four stations. Three-station machines can produce ready-to-eat food packages, cups or products without holes. While a fourth station is added to make a garment in the packages that are used in containers for preserving vegetables or lids for drinks.
We guarantee our customers productivity, work continuity, reliability and high flexibility. We also guarantee the best prices, the least breakdowns and downtime, while achieving the best return for the customer.
|
MM-PM-650
|
MM-PM-800
|
MM-PM-900
|
MM-PM-1000
|
||
|
Dimensions of the Machine
|
Length
|
10.50 m
|
11.50 m
|
14.25 m
|
16.50 m
|
|
Width
|
2.90 m (with electrical cabin)
|
2.75 m (with electrical cabin)
|
3.30 m (with electrical cabin)
|
3.60 m (with electrical cabin)
|
|
|
Height
|
2.60 m
|
2.85 m
|
2.75 m
|
2.95 m
|
|
|
Weight
|
14.000 kg (4 stations)
|
14.500 kg (4 stations)
|
16.000 kg (4 stations)
|
18.000 kg (4 stations)
|
|
|
12.000 kg (3 stations)
|
13.500 kg (3 stations)
|
14.000 kg (3 stations)
|
16.500 kg (3 stations)
|
||
|
Maximum Sheet Width
|
690 mm (+40 mm stretching)
|
840 mm (+20 mm stretching)
|
940 mm (+60 mm stretching)
|
10.040 mm (+60 mm stretching)
|
|
|
Sheet Thickness
|
0,2 - 3,0 mm
|
0,2- 3,0 mm
|
0,2 - 3,0 mm
|
0,2 - 3,0 mm
|
|
|
Maximum Product Height
|
Positive: 120 mm
|
Positive: 130 mm
|
Positive: 140 mm
|
Positive: 140 mm
|
|
|
Negative: 120 mm
|
Negative: 130 mm
|
Negative: 140 mm
|
Negative: 140 mm
|
||
|
Maximum Cycle Speed
|
75 cycles /min. (dry-run)
|
75 cycles /min. (dry-run)
|
60 cycles /min. (dry-run)
|
50 cycles /min. (dry-run)
|
|
|
Maximum Mole Area
|
650x450 mm
|
800x595 mm
|
900x700 mm
|
1.000x750 mm
|
|
|
Clamping Forces
|
Forming station
|
50.000 doN
|
60.000 doN
|
75.000 doN
|
90.000 doN
|
|
Punching station
|
60.000 doN
|
75.000 doN
|
80.000 doN
|
95.000 doN
|
|
|
Cutting station
|
65.000 doN
|
80.000 doN
|
90.000 doN
|
110.000 doN
|
|
|
Heaters Power
|
93kW
|
110kW
|
202kW
|
225kW
|
|
|
Total Power
|
150kW
|
160kW
|
250kW
|
260kW
|
|
|
Air Requirement (7 bar pressure)
|
6-8 m³ /min.
|
6-8 m³ /min.
|
6-8 m³ /min.
|
6-8 m³ /min.
|
|
|
Cooling Requirement
|
25.000 Kcal /h
|
25.000 Kcal /h
|
30.000 Kcal /h
|
30.000 Kcal /h
|
|
|
Vacuum Pump Capacity
|
100m³
|
200m³
|
200m³
|
200m³
|
|
|
Control Unit
|
Schneider
|
Beckhoff
|
Beckhoff
|
Beckhoff
|
|
