Flowpack Over-Wrapping Machine
It is an ideal solution for product packaging in all industrial fields. They are compatible with automatic and manual feeding systems. After adjusting the machine and determining the length of the packaging material from the (PLC) screen, the packaging material is wrapped around the product and the paper is cut with a rotating knife. This machine is considered one of the machines with high productivity and is characterized by ease of operation due to the ability to adjust the entire machine from the control screen and the ability to package products of multiple sizes and sizes on the same machine. It is generally used in the packaging of products individually or in combination.
|
Technical
Specs
|
|
|
Product width
|
Up to 250 mm (Customizable)
|
|
Product
Length
|
Up to 100 mm (Customizable)
|
|
Product
Height
|
Up to 50 mm (Customizable)
|
|
Packing
material roll width
|
Up 350 mm
|
|
Roll outside
diameter
|
Up 350 mm
|
|
Roll inside
diameter
|
76 mm
|
|
Capacity
|
50-100 pcs/min
|
|
Control System
|
PLC with touch screen
|
|
Pneumatic
System
|
Credible international
brand
|
|
Sensor
|
Credible international
brand
|
|
Side heaters
|
220 VAC, 2x700W
|
|
Front heater
|
220 VAC, 2x400W
|
|
Compressed Air
Cons.
|
Min 6 Bar, (MAX 500 Liters/min)
|
|
Electricity
Connection
|
Can be produced according to your
country’s connection system.
|
|
Power
Consumption
|
10 KW
|
|
Package Specification
|
OPP, CPP & aluminum foil,
thickness 30-65 microns
|
|
Machine Weight
|
1000 kg (Approximate)
|
|

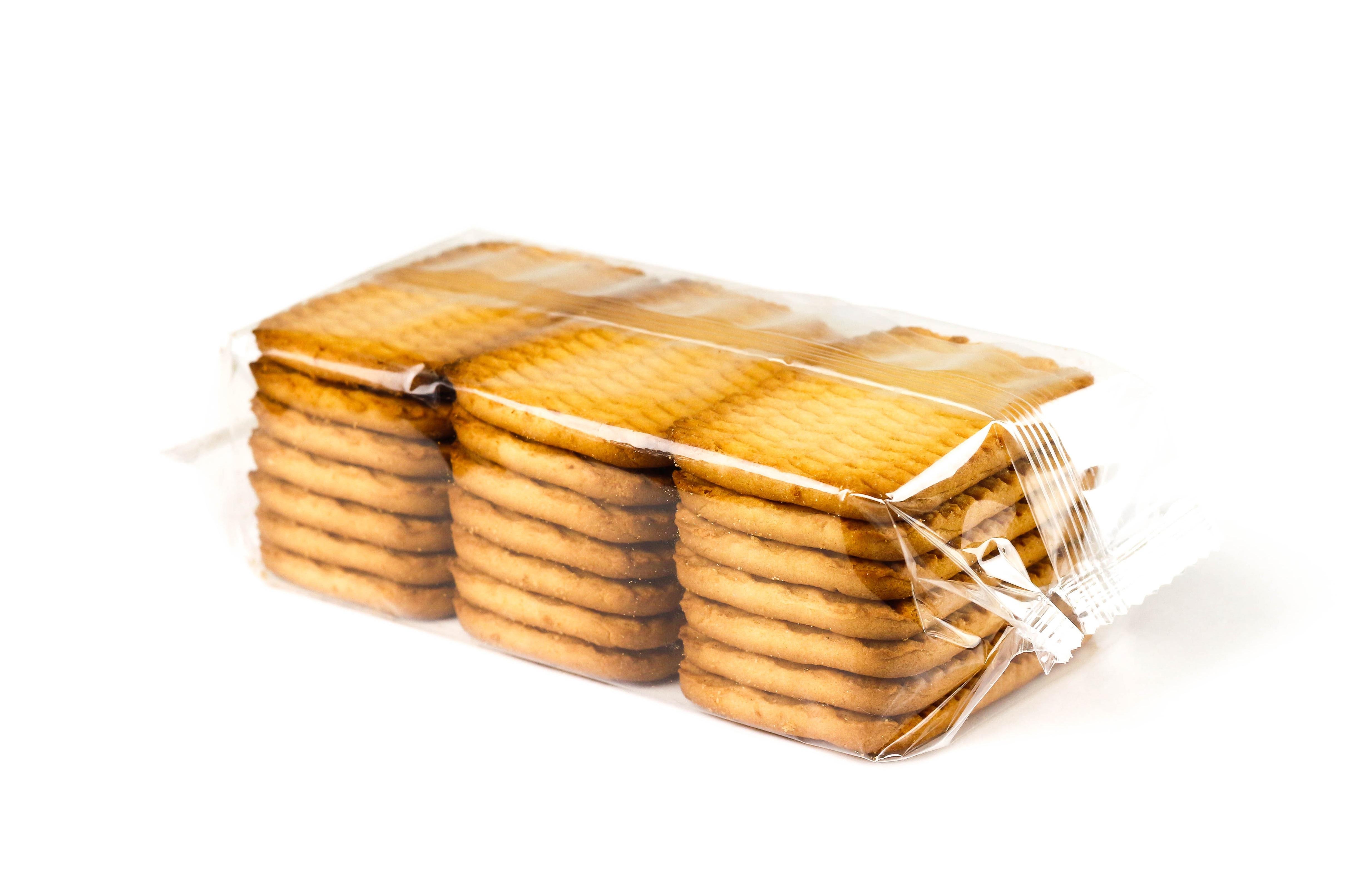

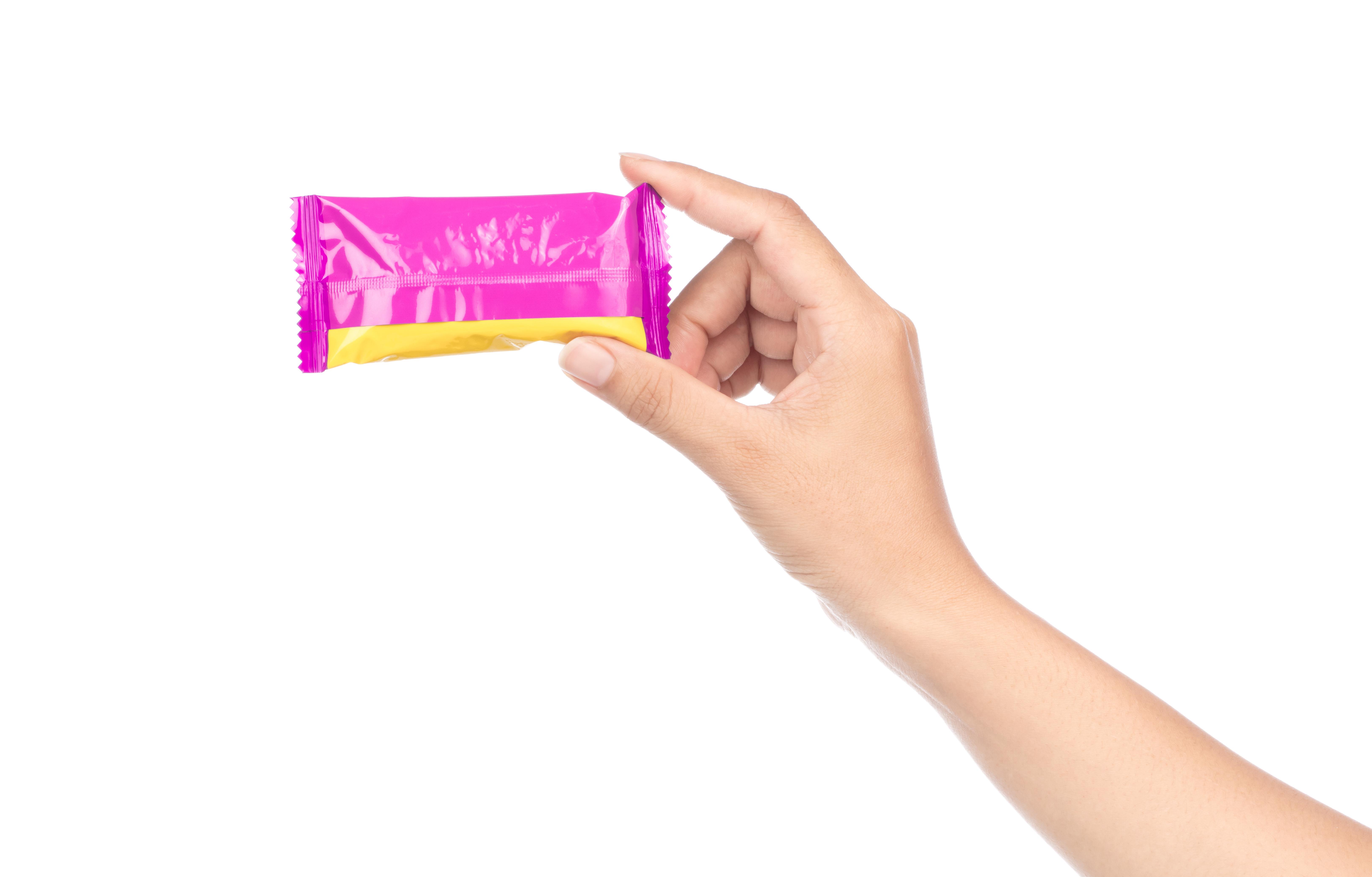

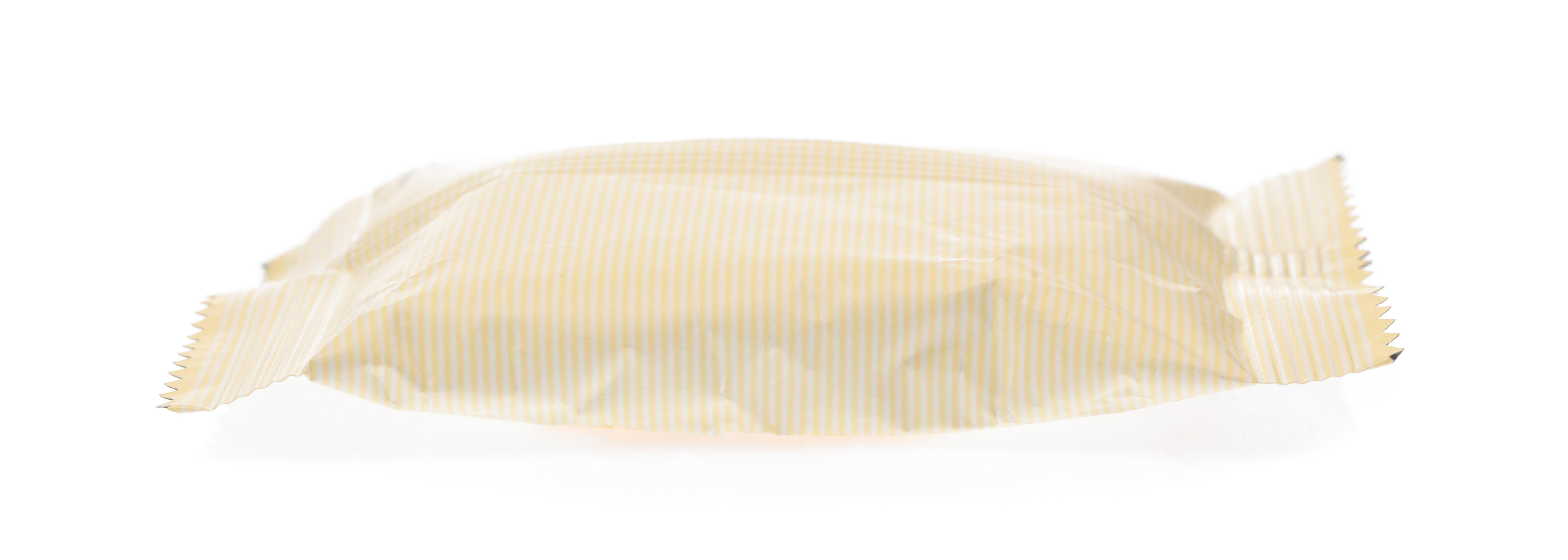

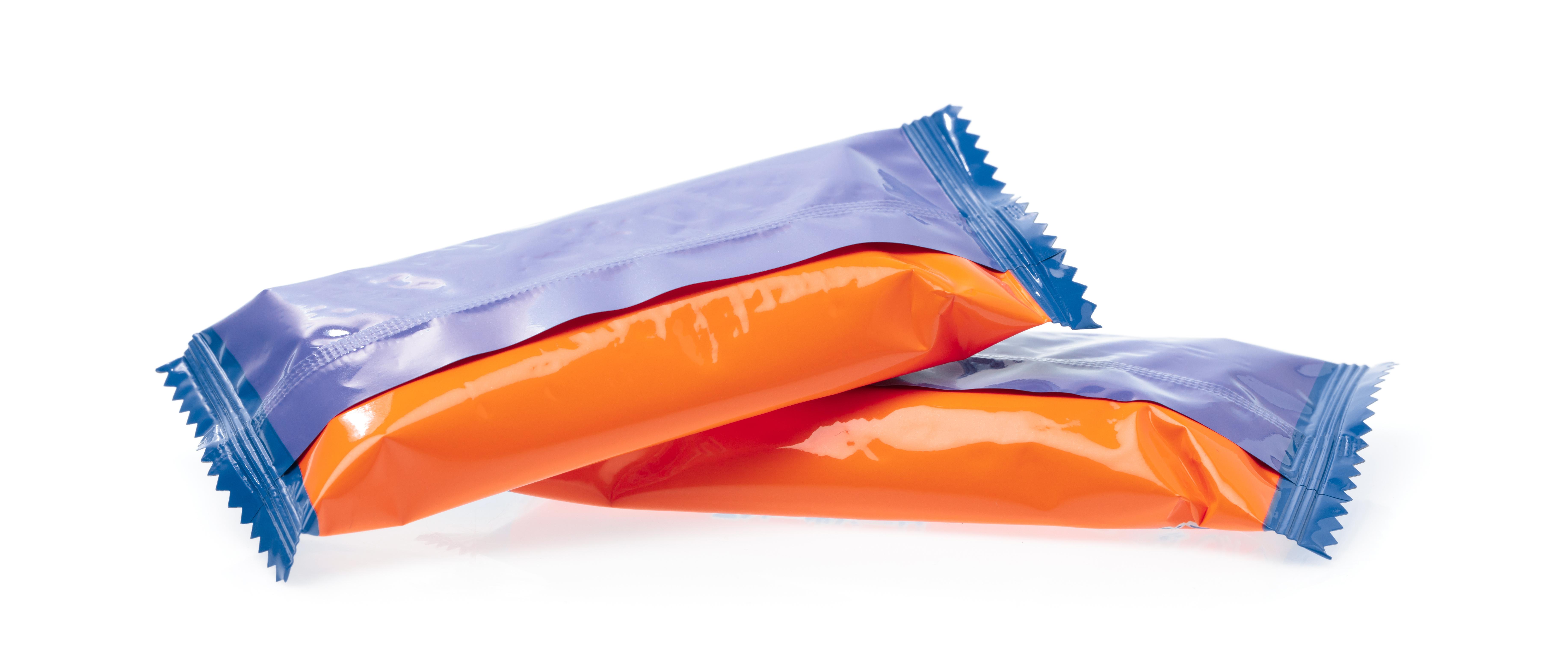

Application
|
The machine
is used in the packaging of all food and non-food items, perfume and cosmetics
industries, medical and soap industries, paper industries, books, electronic
devices and plastic parts.
|
