Sachet Packaging Machine For Powders

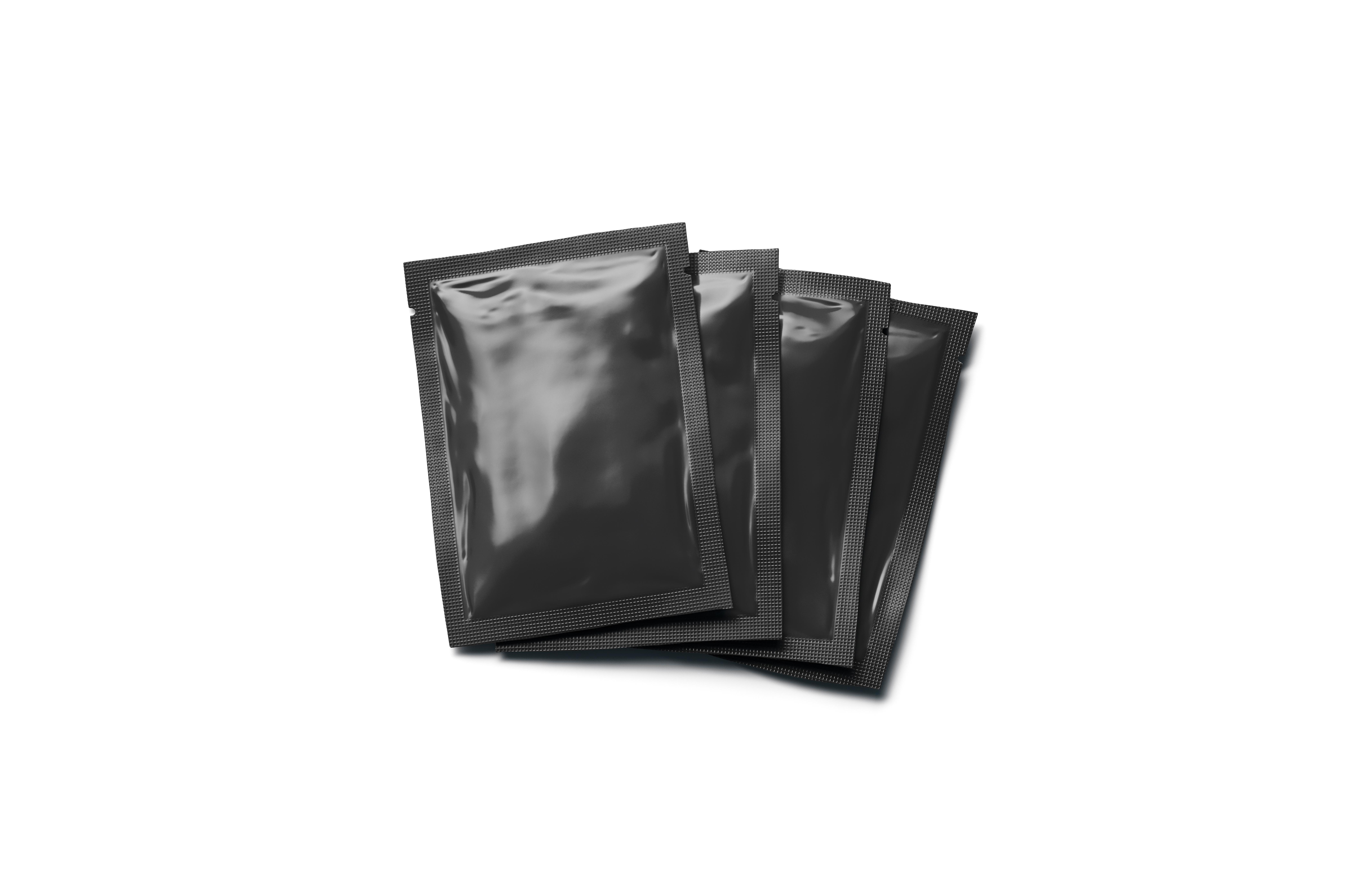

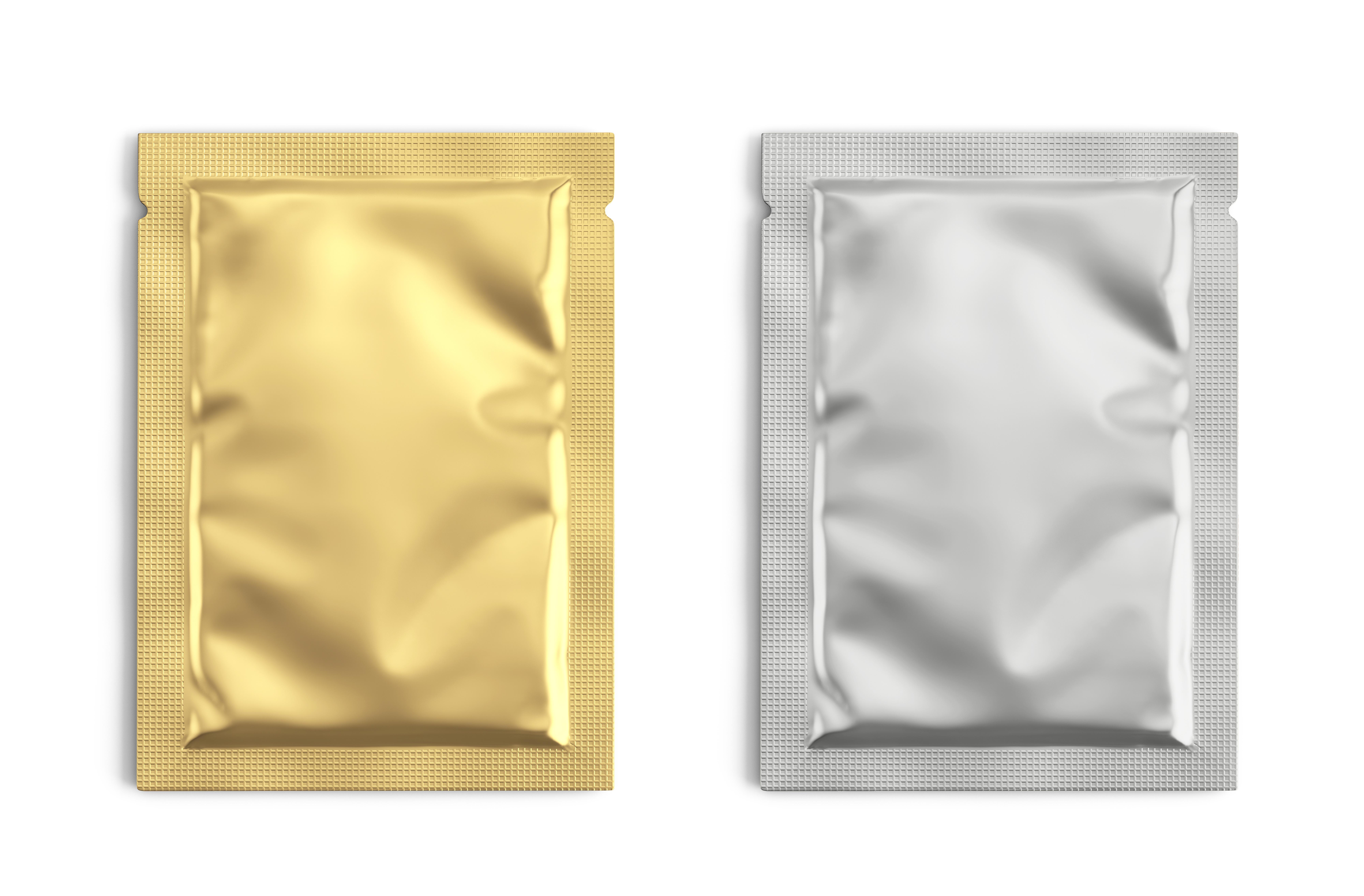

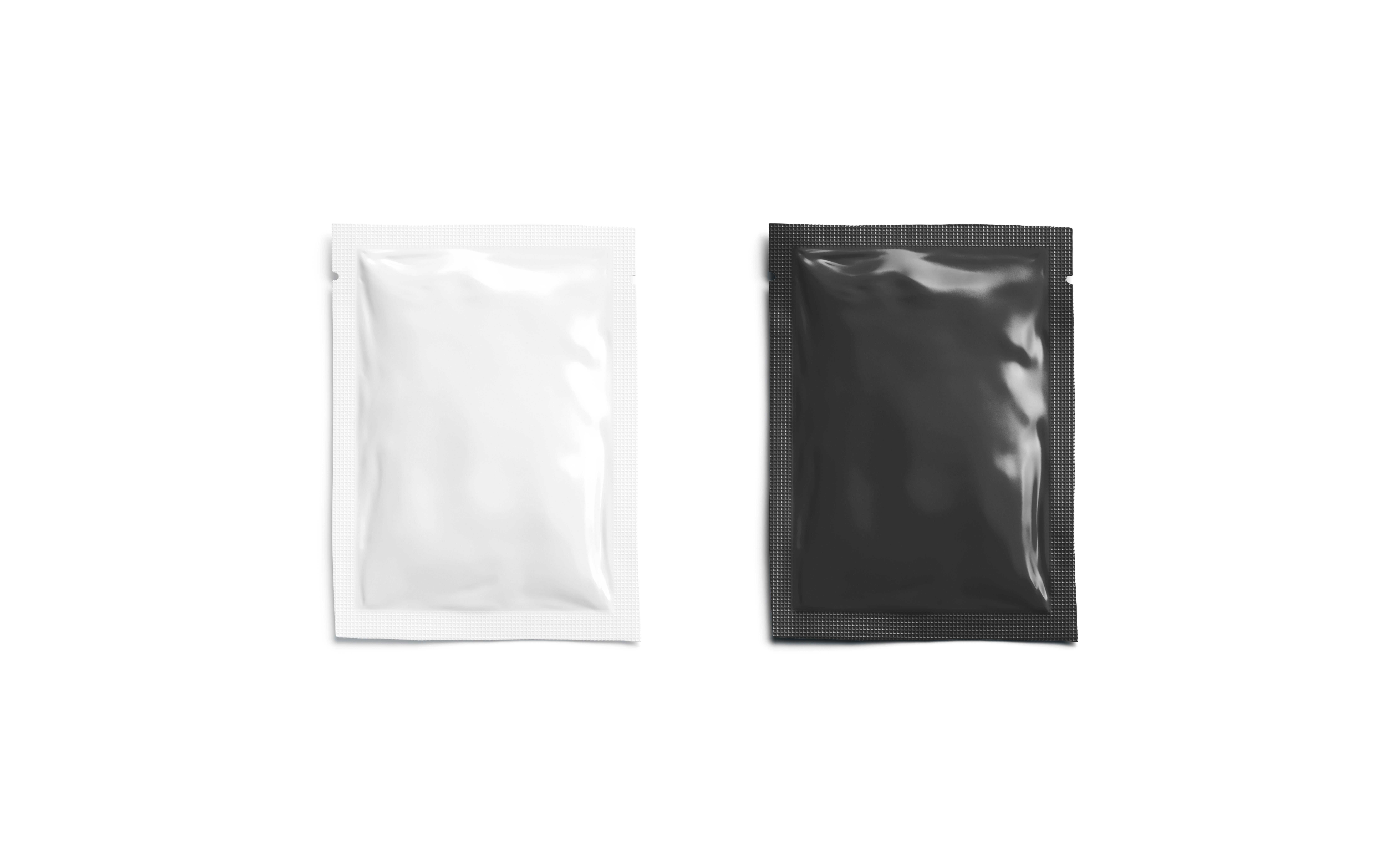

This fully automatic packaging machine that is designed to prepare 4 side sealed sachet-type packages, for non-free-flowing powdered products that have no self-fluidity, which can be packed with a servo motor driven dosing system to assure precise weights in each packet.
|
Technical Specs
|
|
|
Number
Of Lanes
|
1-10
Lanes (Depending on Stick Width)
|
|
Filling
Weight Range
|
(0,25-1 gr) (1-5 gr) (5-20 gr) (20-50 gr)
|
|
Bag
Width
|
Max 150 mm
|
|
Bag
Length
|
40 - 120 mm (adjustable)
|
|
Capacity
|
Max 30 sachets/min/lane (max 350
pcs/min)
|
|
Filling
System
|
Sachets Auger Dosing
|
|
Servo
Motor
|
Credible international
brand
|
|
Control
System
|
Credible international
brand
|
|
Pneumatic
System
|
Credible international
brand
|
|
Sensor
|
Credible international
brand
|
|
Construction
Body
|
Upon Request
|
|
Parts
In Product Contact
|
SS304
|
|
Package
Style Format
|
4 side sealing
|
|
Maximum
Roll Width
|
|
|
Maximum
Roll Diameter
|
450 mm Max.
|
|
Compressed
Air Cons.
|
6 Bar, (MAX 450 Liters/min)
|
|
Weight
of the Machine
|
790
Kgs (Approximate)
|
|
Electricity
Connection
|
Can be produced according to
your country’s connection system.
|
|
Power Consumption
|
11 KW
|
|
Package Specification
|
12 PET, 7 AL, 35-60 PE
|
|
Application
|
Non Free Flowing Products:
coffee, gold coffee, 3in1, coffee cream, powdery chemicals, etc.
|
|
Optional Features
|
Additional Filling System + Additional
Tank Date Coding System
Conveyor Belt
Notch For Sachet Machine
Guillotine Notch For Sachet Machine
Perforation
Auto Feeding System
|
