Vertical Packaging Machine For Powder- VFFS:
This machine can fill all kinds of non- flowing products such as, spices, coffee, cream, milk powder, pepper, chili powder, vanilla etc. Product weight is adjusted by precious screw. The screw-pipe is used in different diameters for varying weights.
|
Technical Specs
|
|
|
Number
Of Lanes
|
Single Lane
|
|
Filling
Weight Range
|
(20-100 gr) (100-500 gr) (500-2500 gr)
|
|
Bag
Width
|
60 - 250 mm (adjustable)
|
|
Bag
Length
|
Max 350 mm (adjustable)
|
|
Capacity
|
Max 30
bags/min
|
|
Filling
System
|
Auger Dosing System
|
|
Servo
Motor
|
Credible international
brand
|
|
Control
System
|
Credible international
brand
|
|
Pneumatic
System
|
Credible international
brand
|
|
Sensor
|
Credible international
brand
|
|
Construction
Body
|
Upon Request
|
|
Parts
In Product Contact
|
SS304
|
|

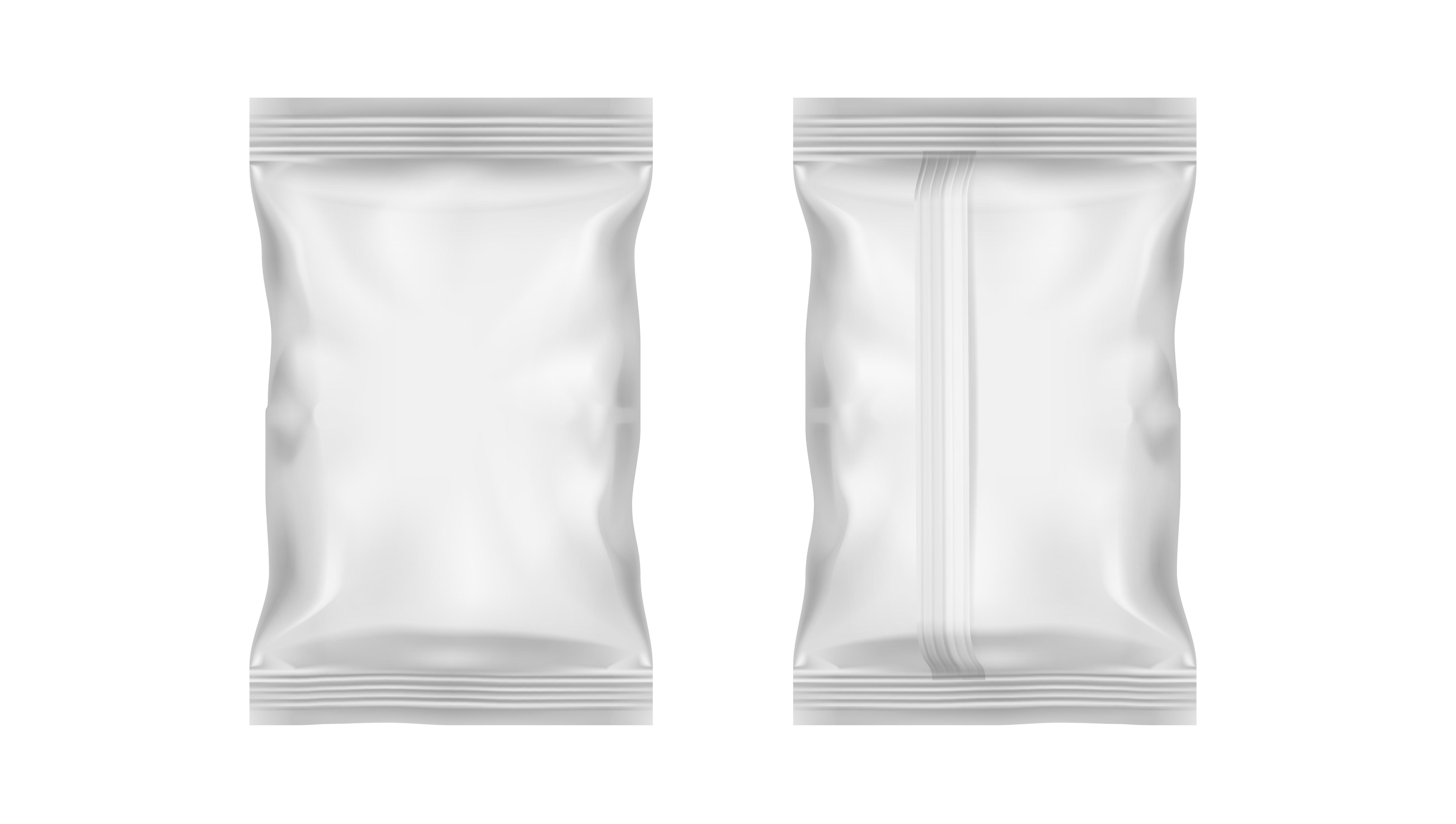

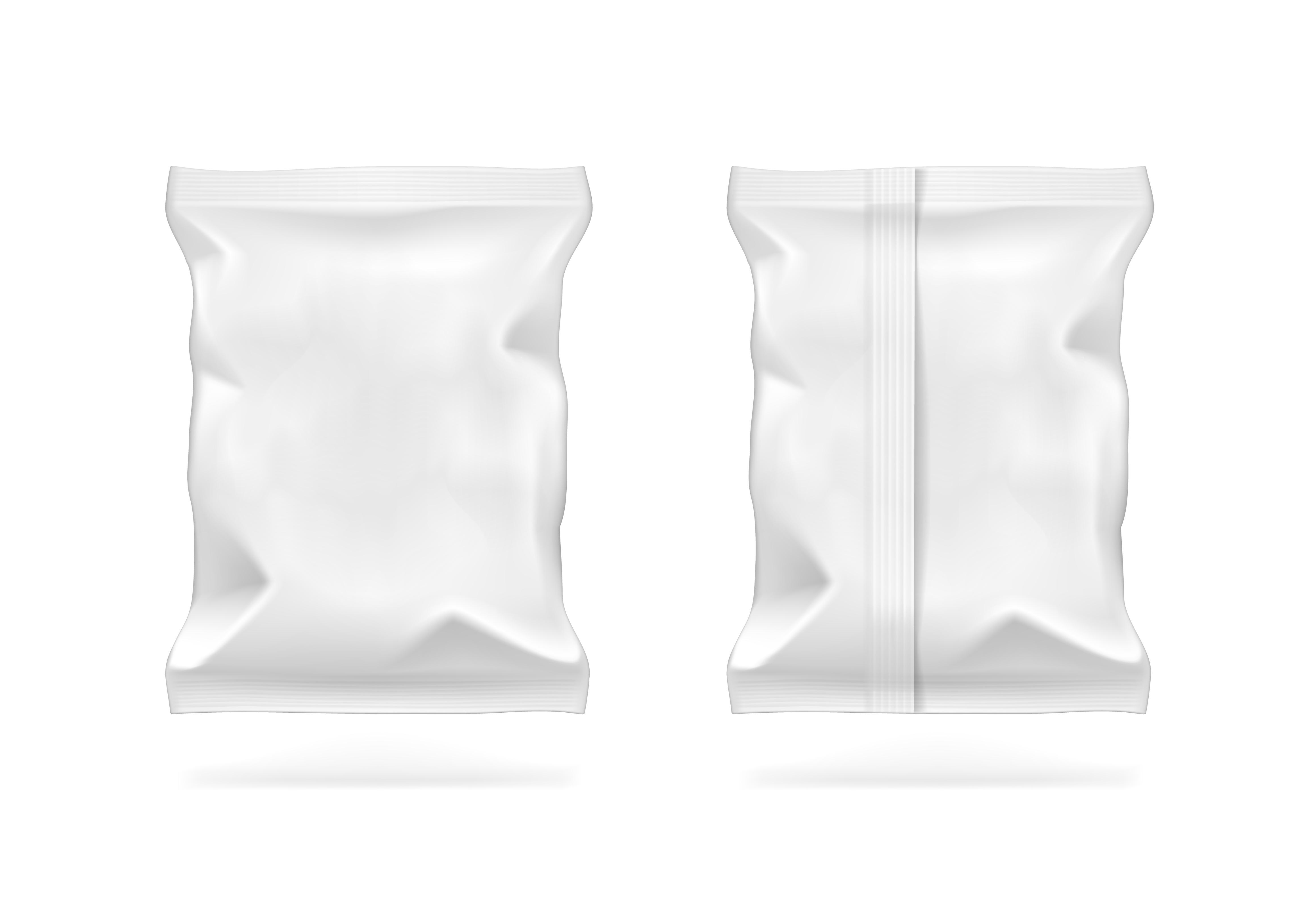

Package
Style Format
|
3 side sealing
|
|
Maximum
Roll Width
|
480 mm Max.
|
|
Maximum
Roll Diameter
|
450 mm Max.
|
|
Compressed
Air Cons.
|
6 Bar, (MAX 450 Liters/min)
|
|
Weight
of the Machine
|
850 Kgs (Approximate)
|
|
Electricity
Connection
|
Can be produced according to
your country’s connection system.
|
|
Power Consumption
|
10 KW
|
|
Package Specification
|
12 PET, 7 AL, 35-60 PE
|
|

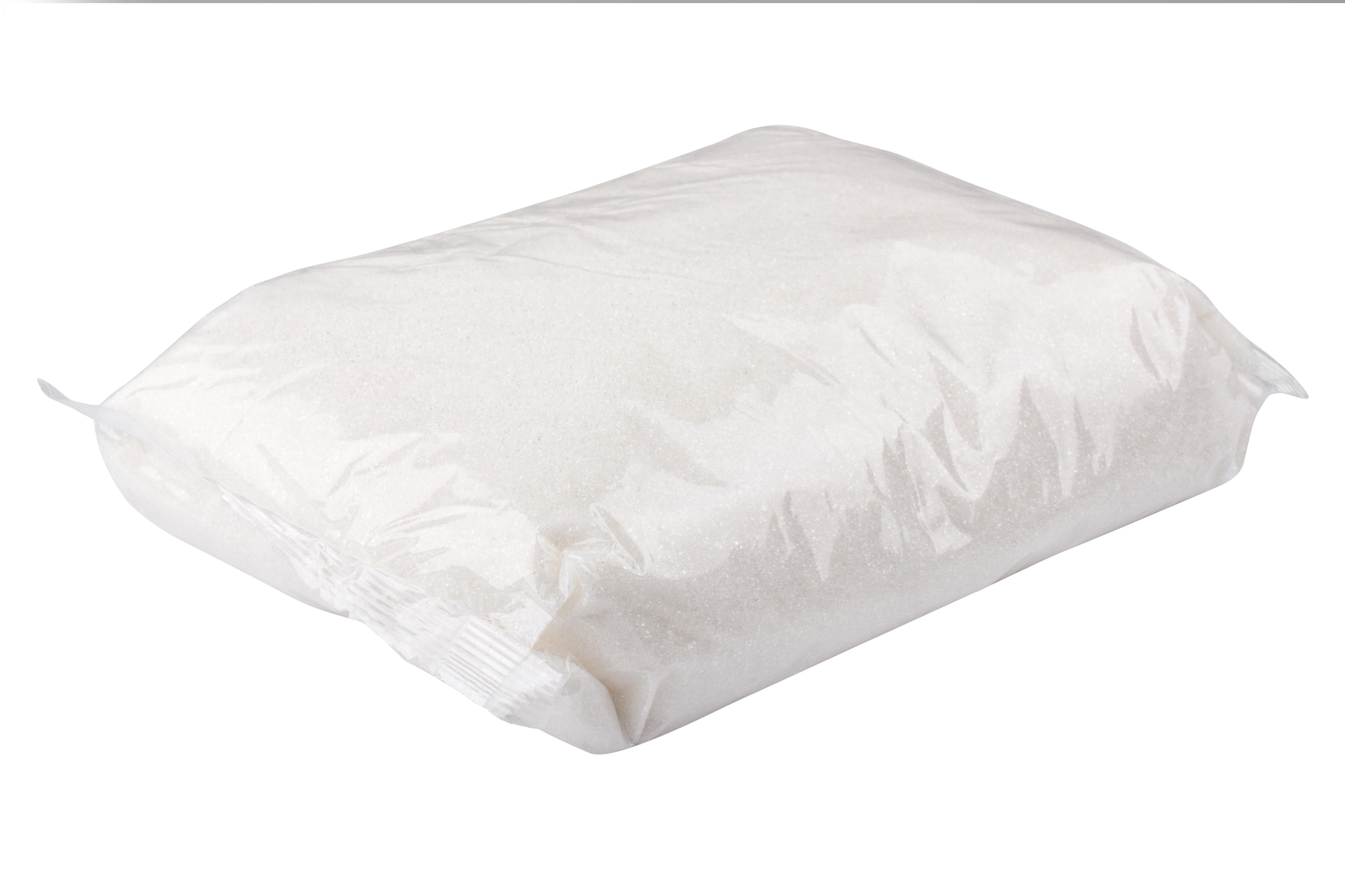

Application
|
Suitable for packing powdered
products, such as coffee, milk powder, flour, powdery chemicals etc.
|
|
Optional Features
|
Additional Collar - Date Coding System
Conveyor Belt - Easy Open Side Tear Notch- Perforation Gusset
Auto Feeding System
|
